$300.00 off

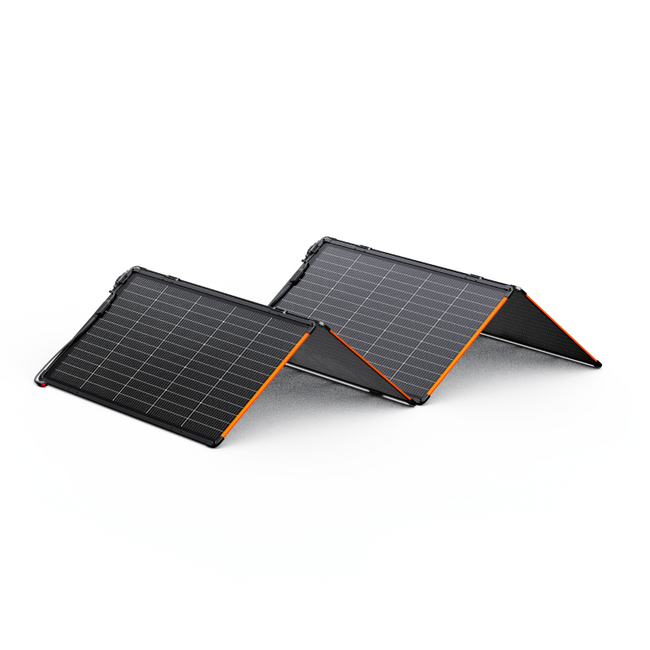

Jackery SolarSaga 340 X Solar Panel
By Jackery
SKU: 340Wx
$699.00 CAD
$999.00
$699.00
The Jackery SolarSaga 340X delivers 340W of high-efficiency solar power with 25% TOPCon conversion and IP68 durability. Pair with the Explorer 5000 Plus, HomePower 3000, or Explorer 2000 v2 to capture and store solar energy for reliable home, RV, or outdoor use.
-
340W High-Power Solar Charging
Comes with 4 SolarSaga 85 panels — use them together or separately.
-
25% Dual-Sided Efficiency
-
Expandable DIY Setup
-
IP68 & Extreme Temperature Ready
-
M-Shaped Stable Design
- IEC Certified + 5-Year Warranty
- Compatible with the 5000 Plus, HomePower 3000, 3000 Pro, 2000 Plus, 2000v2, 1000 Plus, and 1000 v2, 600 v2
340W High Power Output
Built from 4 SolarSaga 85 panels, the 340X delivers up to 340W plug-and-play power. Each panel works independently, offering flexible setups for home backup or outdoor use.
Stable & Portable Design
An M-shaped structure with ground stakes ensures stability in strong winds. Paired with a carry bag, it’s easy to store, move, and power on the go.
Charging Time
| Product Model | Number of 340X Solar Panels | 0-80% Charging Time | 0-100% Charging Time |
|
Explorer 2000 Plus |
1 2 |
6.5h 3.3h |
8h 4.2h |
|
Explorer 5000 Plus |
1 2 |
16H 8H |
20H 10H |
|
HomePower 3000 |
1 2 |
10H 5H |
12H 6H |
|
Explorer 1000 Pro |
1 2 |
4H 1.8H |
5H 2.5H |
|
Explorer 1000 v2 |
1 2 |
3.5H 1.8H |
4.5H 2.5H |
|
Explorer 2000 v2 |
1 2 |
7H 3.5H |
8.5H 4.5H |
|
E600 V2 |
1 |
2.6H |
3.5H |
Specs
General
- Weight:14lb±1lb
- Waterproof:IP68
- Operating Temperature Range:-40℉~185℉
- Warranty:5
Solar
- Maximum System Voltage:600 VDC
- Maximum Reverse Current:15A
- Bifaciality Coefficient (back/front):Pmax>80%，Voc>97%，Isc>80%
- Voltage Temperature Coefficient:-0.26%/℃
- Power Temperature Coefficient:-0.32%/℃
- STC (1000W/㎡, 25℃, AM 1.5)
-
Peak Power (Pmax):340W±5%
-
Open Circuit Voltage (VOC):48.9V±5%
-
Short Circuit Current (Isc):8.68A±5%
-
Power Voltage (Vmp):42V±5%
-
Power Current (Imp):8A±5%
- BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
-
Peak Power (Pmax):372W±5%
-
Open Circuit Voltage (Voc):49.6V±5%
-
Short Circuit Current (Isc):9.24A±5%
-
Power Voltage (Vmp):42.8V±5%
-
Power Current (Imp):8.56A±5%
Dimensions
- Folded:Around 998 × 525 × 62.5mm
- Unfolded:Around 1562 × 981.5 × 294mm
