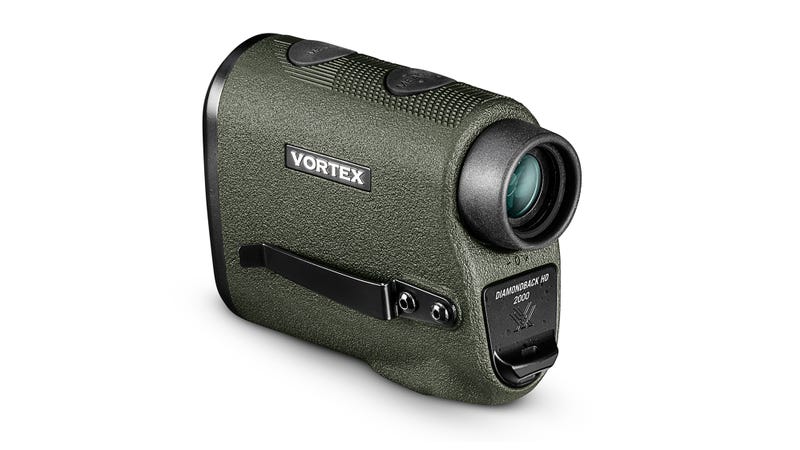

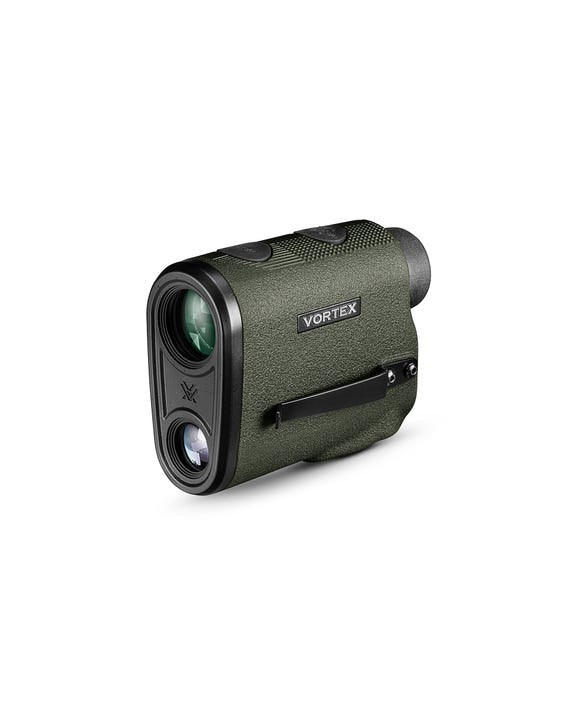

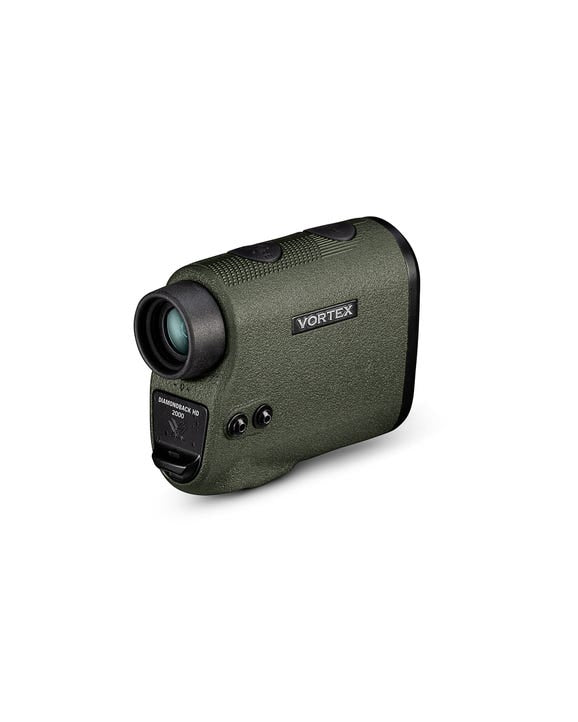

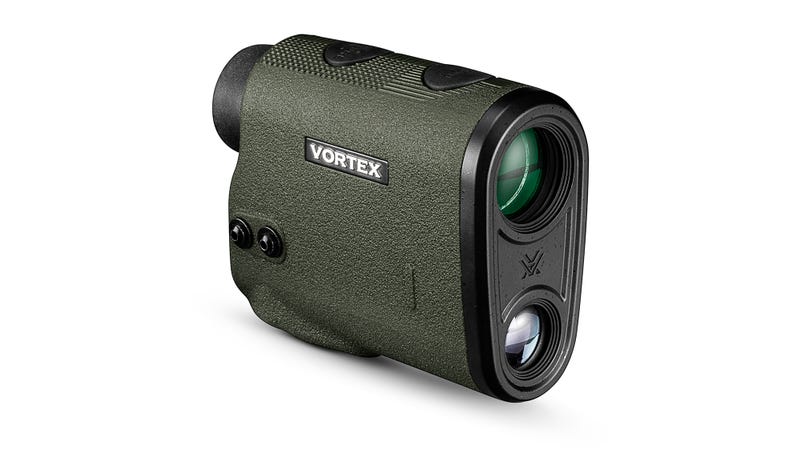

Diamondback® HD 2000 Laser Rangefinder
Proveedor Vortex Optics
SKU: VT-LRF-DB2000
$469.00 CAD
$619.00
$469.00
SPEND $500 — GET $25 STORE CREDIT
Shop eligible products worth $500 or more and receive $25 in RMH Outdoors store credit for your next purchase.
SPEND $1,200 — GET $75 STORE CREDIT
Spend $1,200 or more on eligible products and receive $75 in RMH Outdoors store credit for your next purchase.
Made for practical hunters who value no-excuses performance, Diamondback® HD 2000 is your ranging workhorse in the field. Built tough to withstand the abuse your hardest hunts can dish out, its easy-to-use controls and high-definition optical system handle everything from point-blank shots in tight timber to longer-distance game with shoulder-crushing accuracy. Simple. Tough. Reliable. It’s the rangefinder that lives up to its tag-punching promise, hunt after hunt.
Manuals & parts
Product Manual (PDF)(1.03 MB)
Feature Tech
Ranging Modes
- Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
- Line of Sight (LOS): Displays the actual line of sight range.
- Scan Feature: Displays continuous distance readings while panning across a landscape.
Target Modes
- Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
- Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
HD Optical System- Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
XR™ Plus Lens Coatings- Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
ArmorTek®- Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Rubber Armor- Provides a secure, non-slip grip, and durable external protection.
Red OLED Display- Optimized for low light.
Ranging Format- Range in yards or meters.
Diopter- Adjusts for differences in a user's eyes. Located on eyepiece.
Waterproof- Designed to withstand harsh weather conditions.
Shockproof- Designed to withstand the highest levels of impact.
Tripod Adaptable- Allowing use on a tripod or car window mount. Tripod adapter may be required.
Specifications
| Magnification | 7x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Eye Relief | 16.0mm |
| Angular Field of View | 6.4º |
| Linear Field of View | 335' @ 1000 yds |
| Range Reflective (yards) | Up to 2,000 yds. |
| Range Tree (yards) | Up to 1,800 yds. |
| Range Deer (yards) | Up to 1,400 yds. |
| Min Range | 5 yds. |
| Accuracy | 1 yds. @100 yds. |
| Length | 4.1" |
| Height | 3.1" |
| Width | 1.8" |
| Weight | 7.6 oz. |
| Max Angle Reading | +/- 60º |

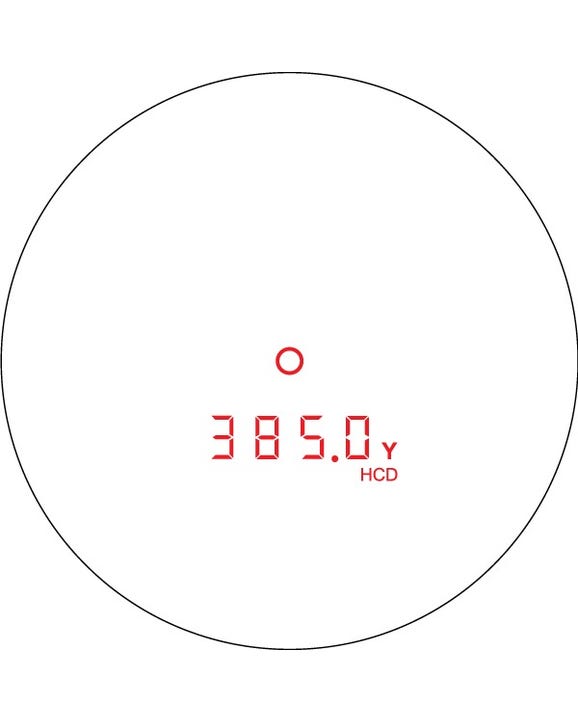

Reticle
HCD CORRECTED SHOOT-TO RANGE
The Diamondback® HD 2000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
