Wavian Front-Loading Jerry Can Holder — 20L
This is a premium edition 20-Liter (5.3 Gallon) Wavian front loading metal holder that is new to our current range. Wider back support will keep your 20-liter fuel can even more secure either when attached to a vehicle or when a secure environment for your fuel can is necessary. This is a heavier, more robust 20 Liter Jerry Can Holder than our standard Top Loader.
Front-loading holder for the Wavian 20L jerry can — the traditional military-style mount that slides the can in horizontally and secures it with a locking bar. Ideal for external vehicle mounting where vertical clearance is limited, or for wall-mounting cans in a garage or shed.
- Fits: Wavian 20L jerry cans
- Style: front-loading with locking bar
- Material: powder-coated steel
- Mounting hardware not included
The holder is specifically designed to fit Wavian fuel cans. If you're purchasing for a different brand, please check the size before ordering. Additionally, note that the nozzle cannot be stored in the holder with the jerry can inside, as it will not fit. Please be aware that a jerry can is not included with this product.
- Long life expectancy due to solid metal construction
- Quick and easy removal/storage of the can
- Plastic pads support the fuel can against abrasion and help vibration dampening.

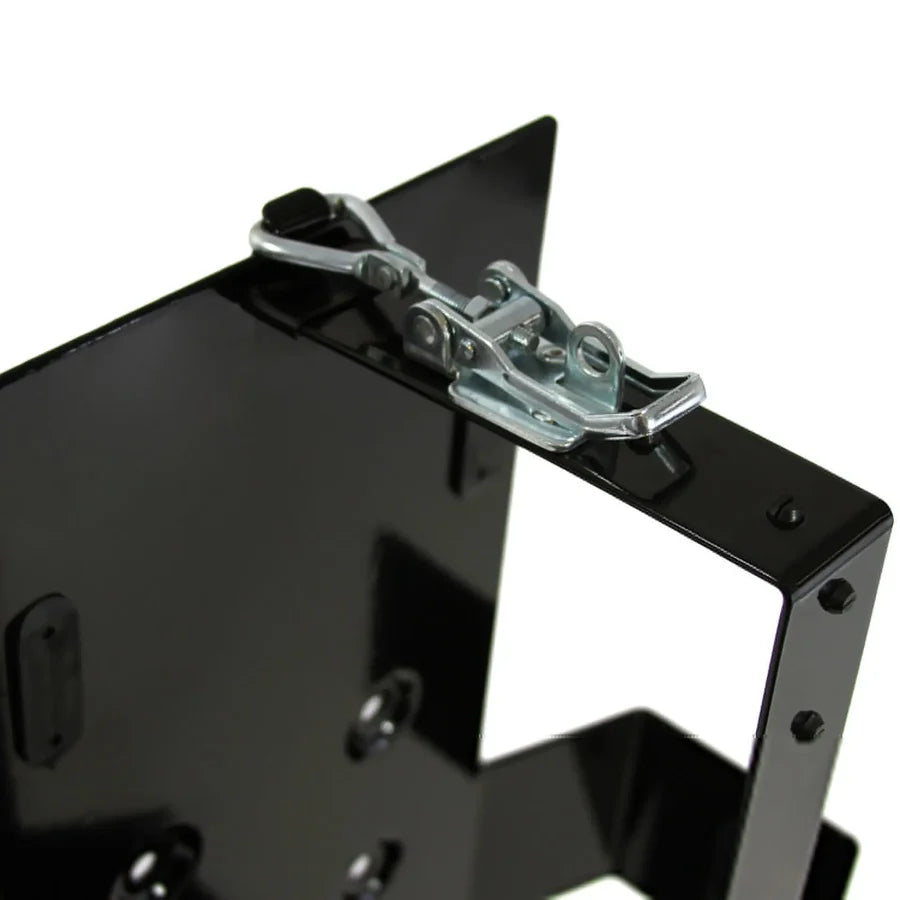

- Adjustable and lockable clasp (padlock not included)
- Can be attached to both vertical and horizontal surfaces through a depth screw placement.
- Color: Powder-coated black
- Weight: 9.5 lbs.
- Height 20"
- Width 7.25"
- Depth 14.25"

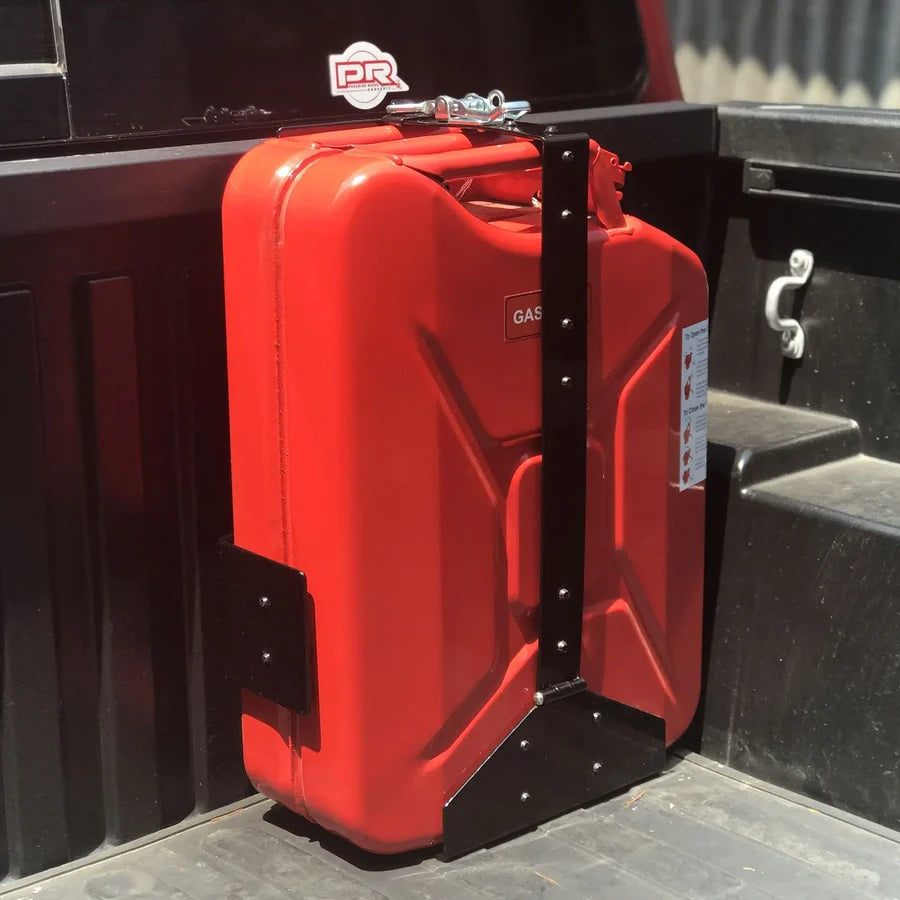

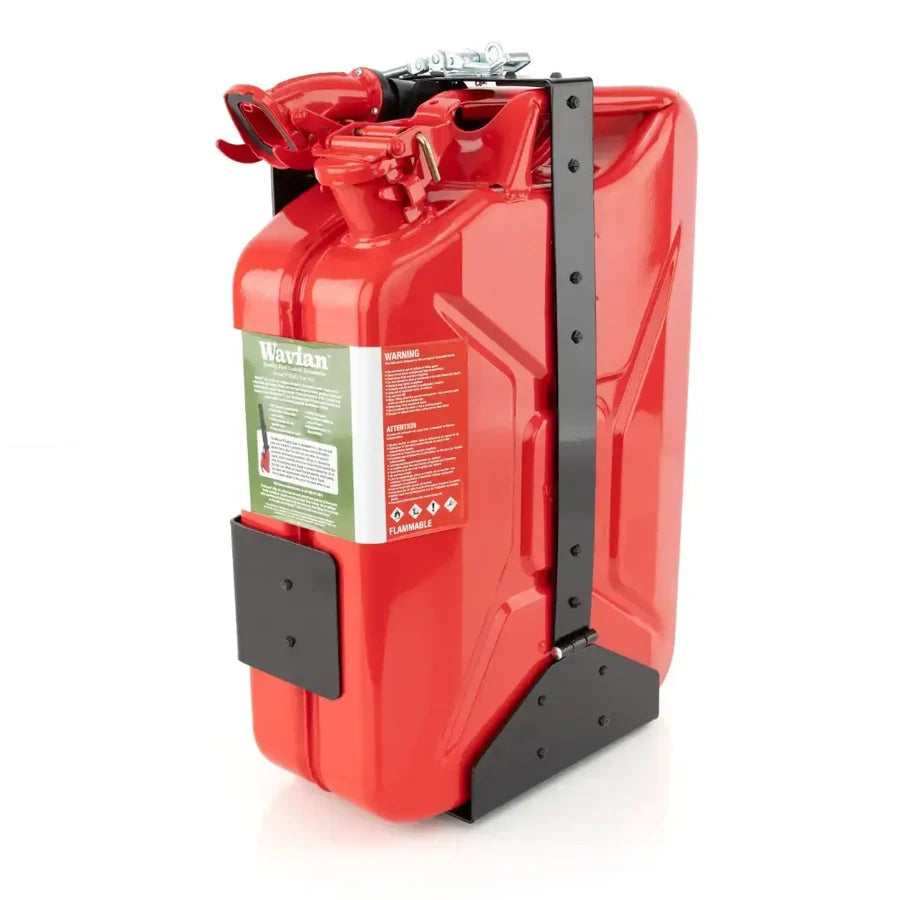

The image shown is for demonstration purposes only to illustrate how the cans fit in the holder.
Holder specifications
| Top-loading 20L | Front-loading 20L | Top-loading 10L | |
|---|---|---|---|
| Fits | 20L fuel can, 22L water can | 20L fuel can, 22L water can | 10L fuel can |
| Loads from | Above | Front | Above |
| Closure | Swing-over lever | Hinged bar with adjustable clasp | Swing-over lever |
| Overall size (W × H × D) | 14.8 × 19.2 × 7.1 in (377 × 487 × 180 mm) | 14.4 × 19.8 × 7.4 in (366 × 502 × 187 mm) across the side wings; back plate 8.5 in (215 mm) wide | 14.8 × 11.6 × 7.1 in (377 × 295 × 180 mm) |
| Footprint | 13.7 × 7.1 in (348 × 180 mm) | 13.7 × 7.3 in (348 × 186.5 mm) | 13.7 × 7.1 in (348 × 180 mm) |
| Weight | 6.3 lb (2.87 kg) | 9.3 lb (4.2 kg) | 4.9 lb (2.2 kg) |

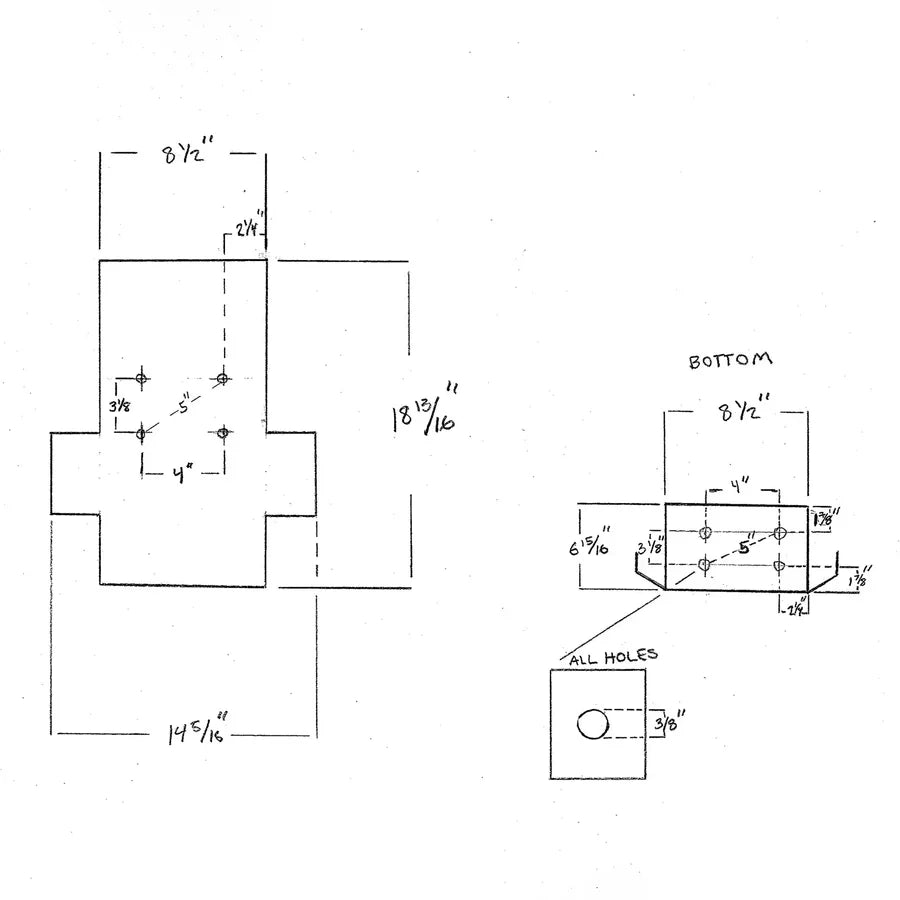

| Mounting holes | 10 holes, 8.2 mm (clear a 5/16 in bolt) | 8 holes, 10.5 mm (clear a 3/8 in bolt): 4 in the back plate and 4 in the floor, each set on a 4 × 3⅛ in (100 × 80 mm) pattern | 10 holes, 8.2 mm (clear a 5/16 in bolt) |
| Lock hole | 6 mm | 9 mm | 6 mm |
| Mounting hardware | Not included | Not included | Not included |
| Padlock | Lockable; padlock not included | Lockable; padlock not included | Lockable; padlock not included |
| Mounts to | Vehicle or wall | Vertical or horizontal surface, through the back plate or the floor | Vehicle or wall |
| Finish | Steel, gloss black powder coat (RAL 9005) | Steel, gloss black powder coat (RAL 9005), rubber pads | Steel, gloss black powder coat (RAL 9005) |
| Spout stored with can | Yes | No | Yes |

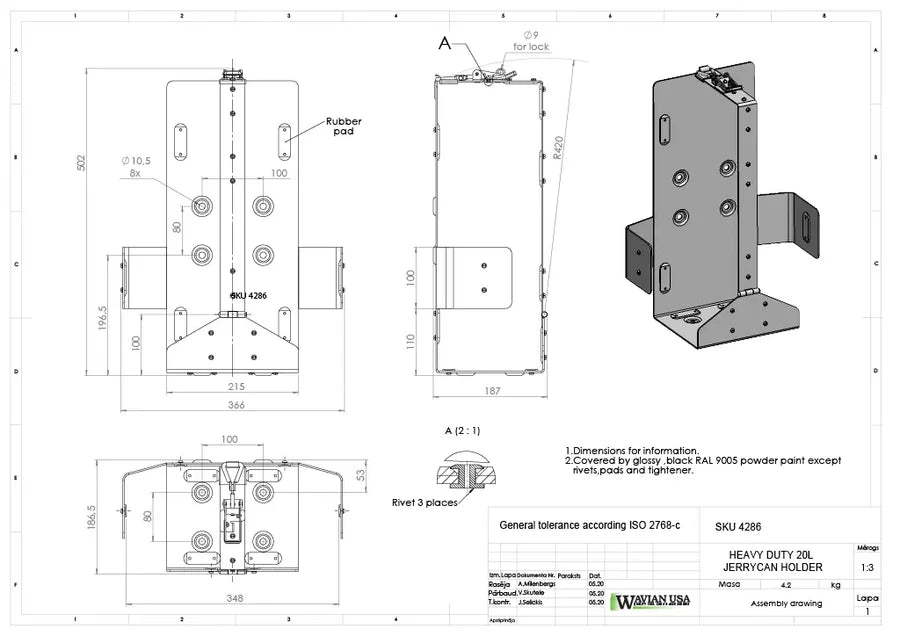

Dimensions and masses are from the Wavian USA factory assembly drawings. Fit, placement, and the loaded-weight table for each holder are in How to Mount a Jerry Can.
