Download Portable Diesel Air Heater Planar 2D – 12V brochure
- 2,700–7,000 BTU heat output (0.8–2.0 kW)
- 12V DC diesel air heater
- Runs on diesel fuel or kerosene

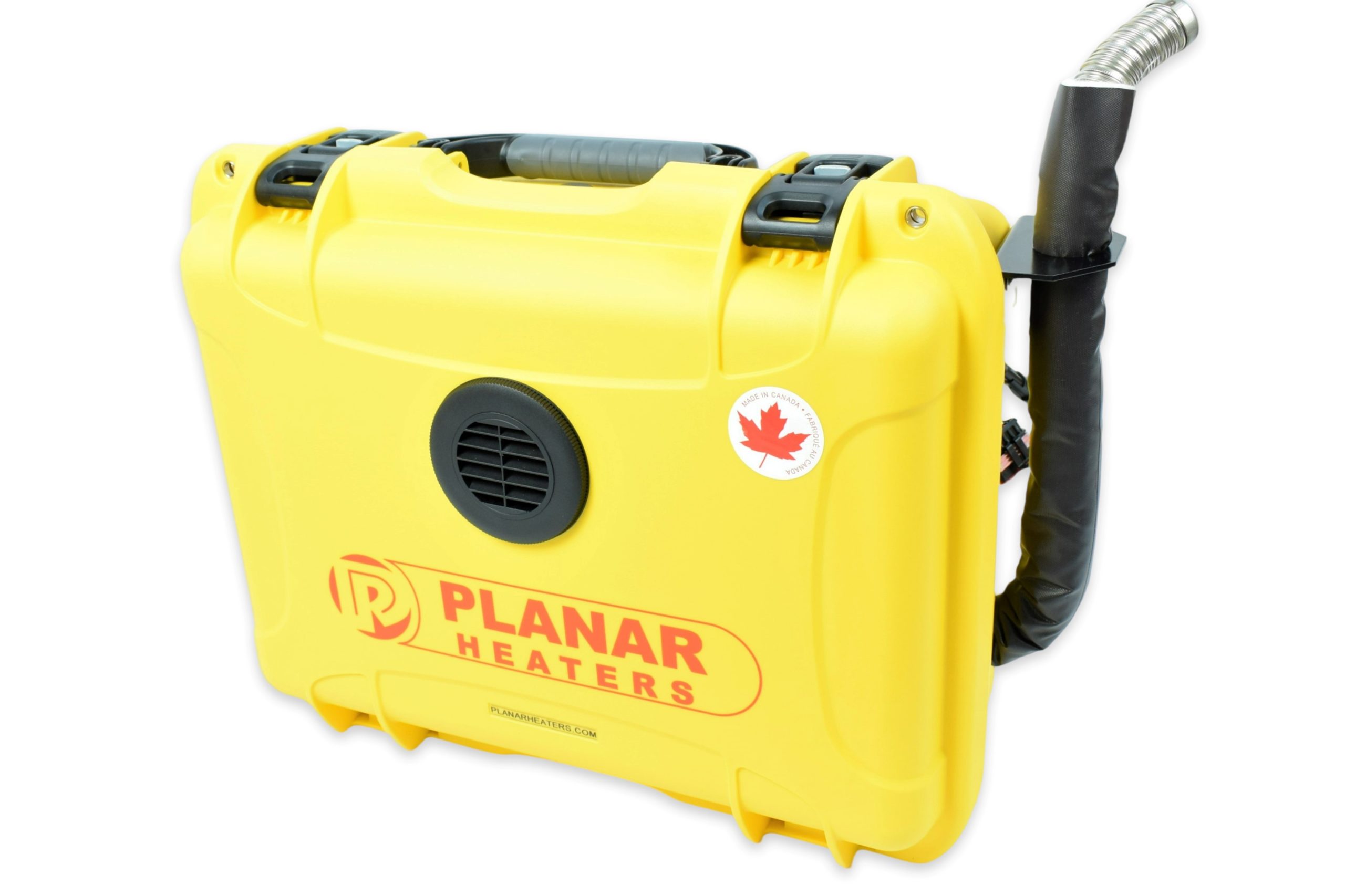

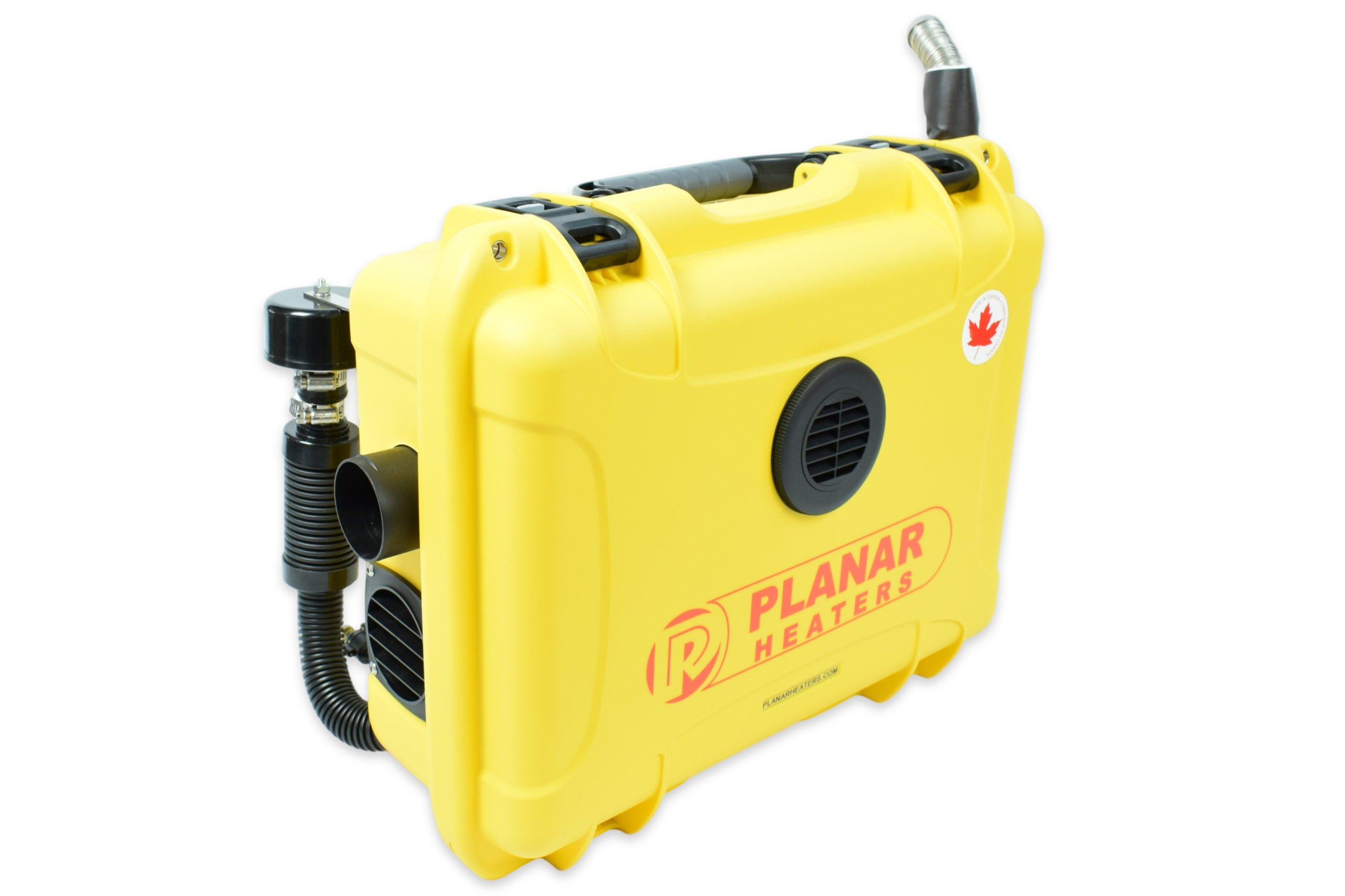

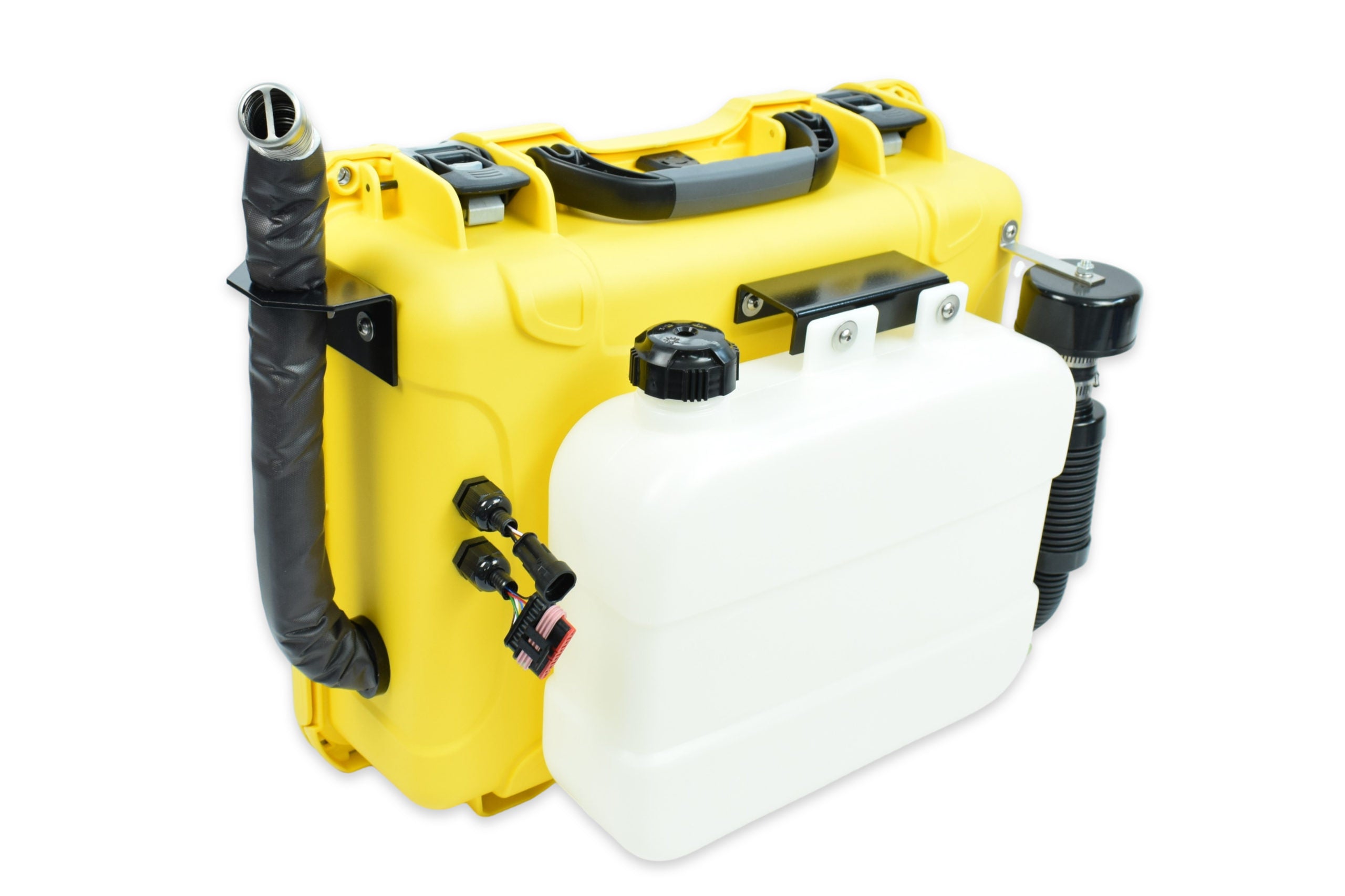

- Portable, self-contained design

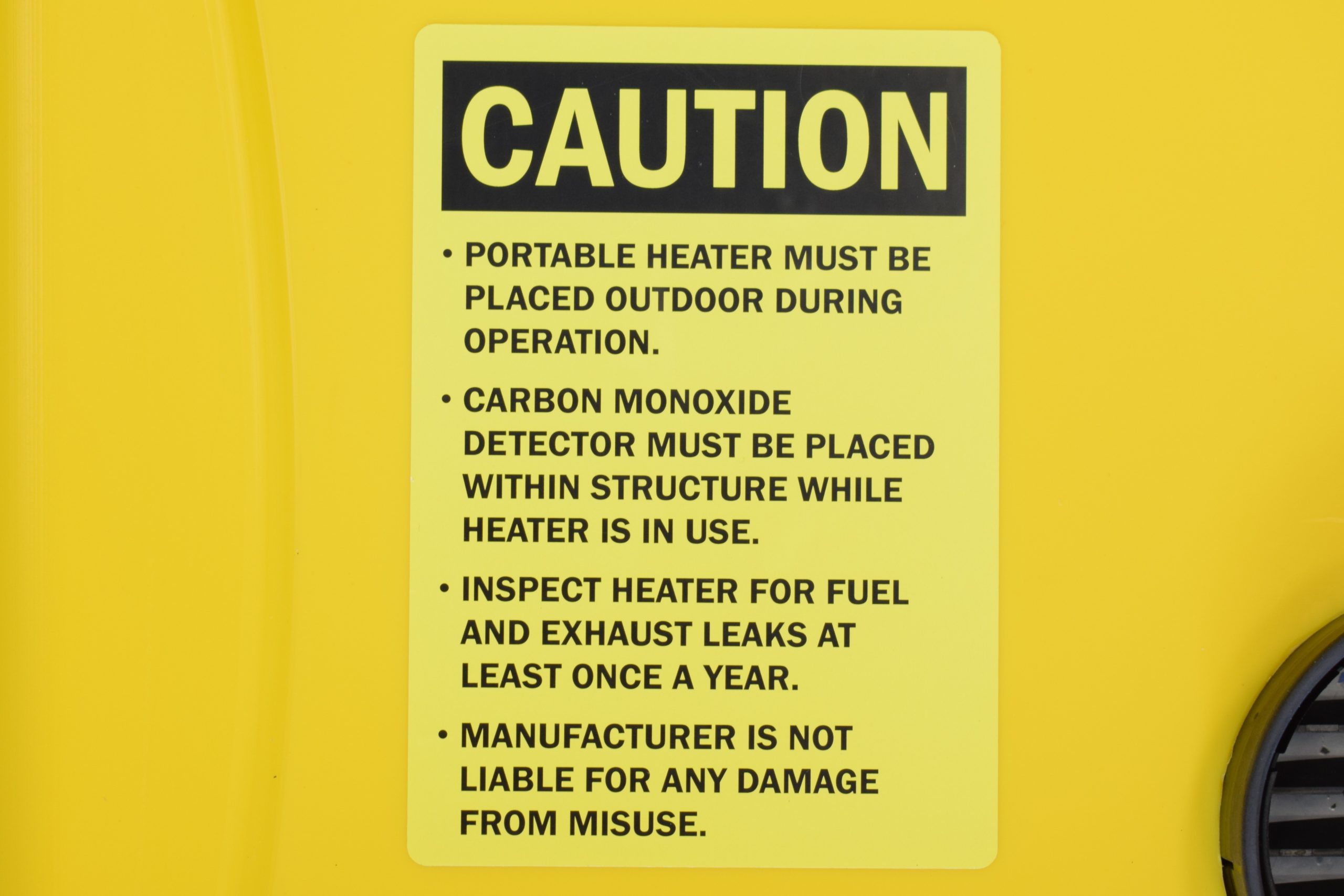

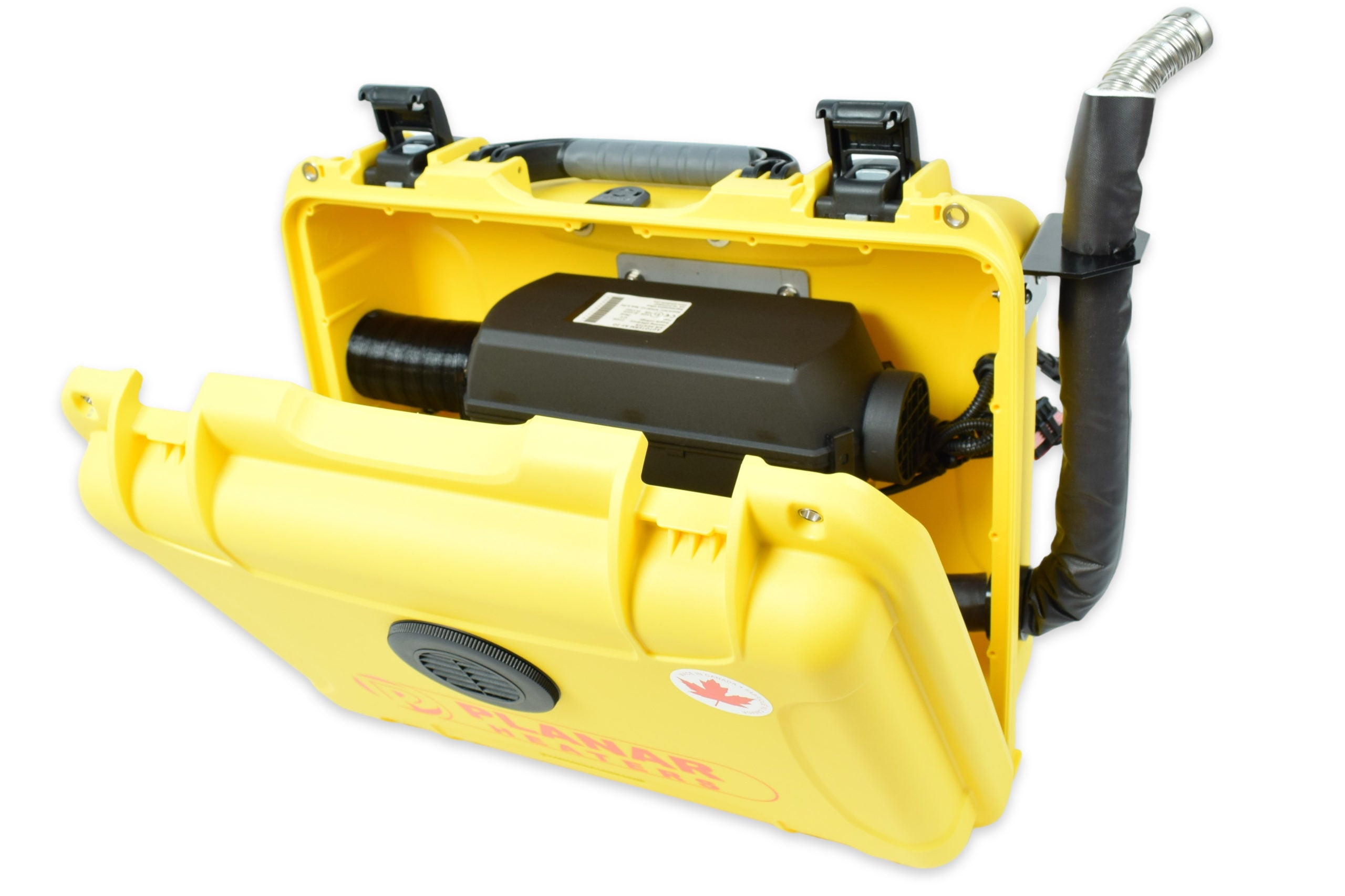

- Crushproof, rain-resistant carrying case

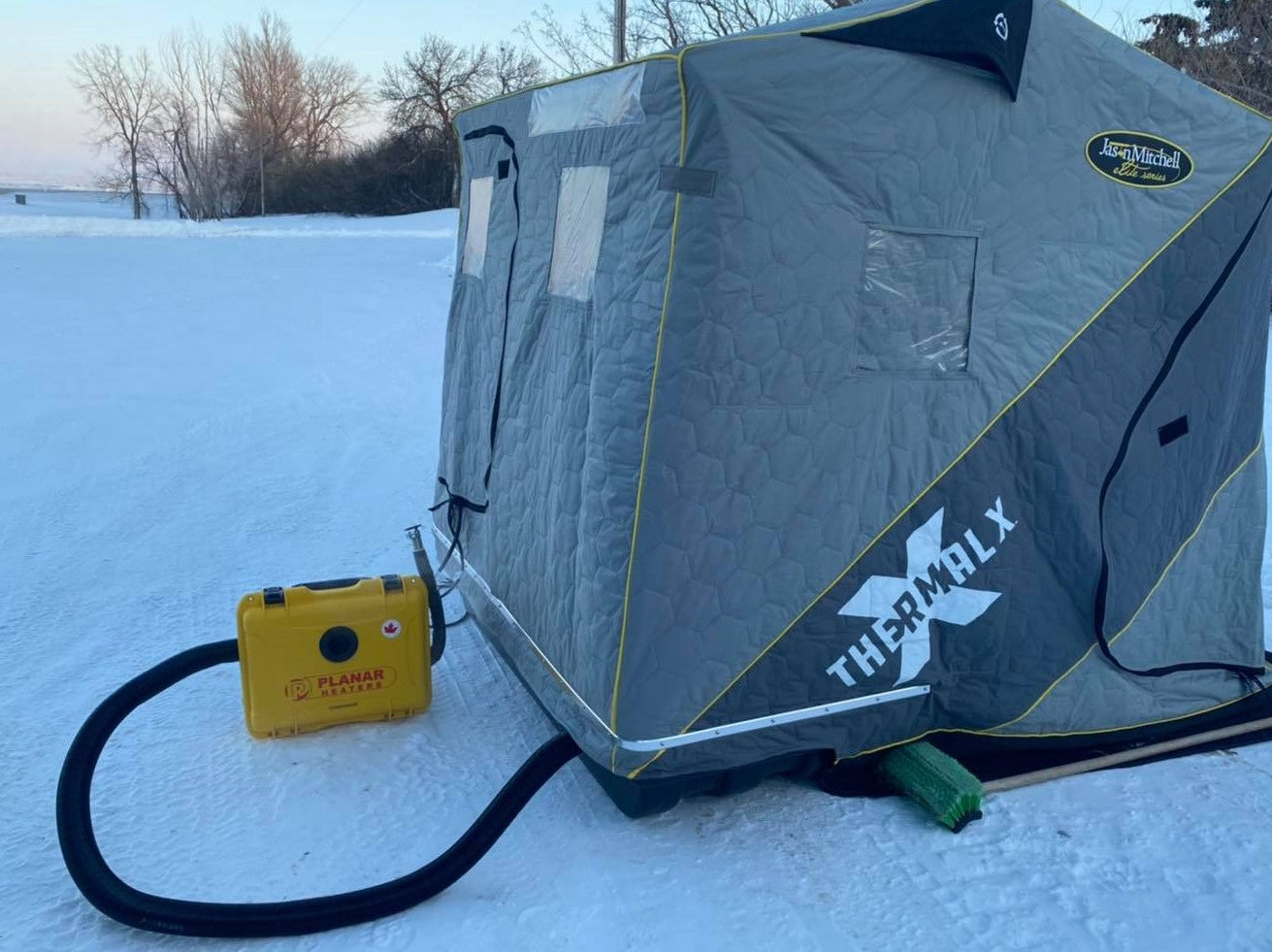

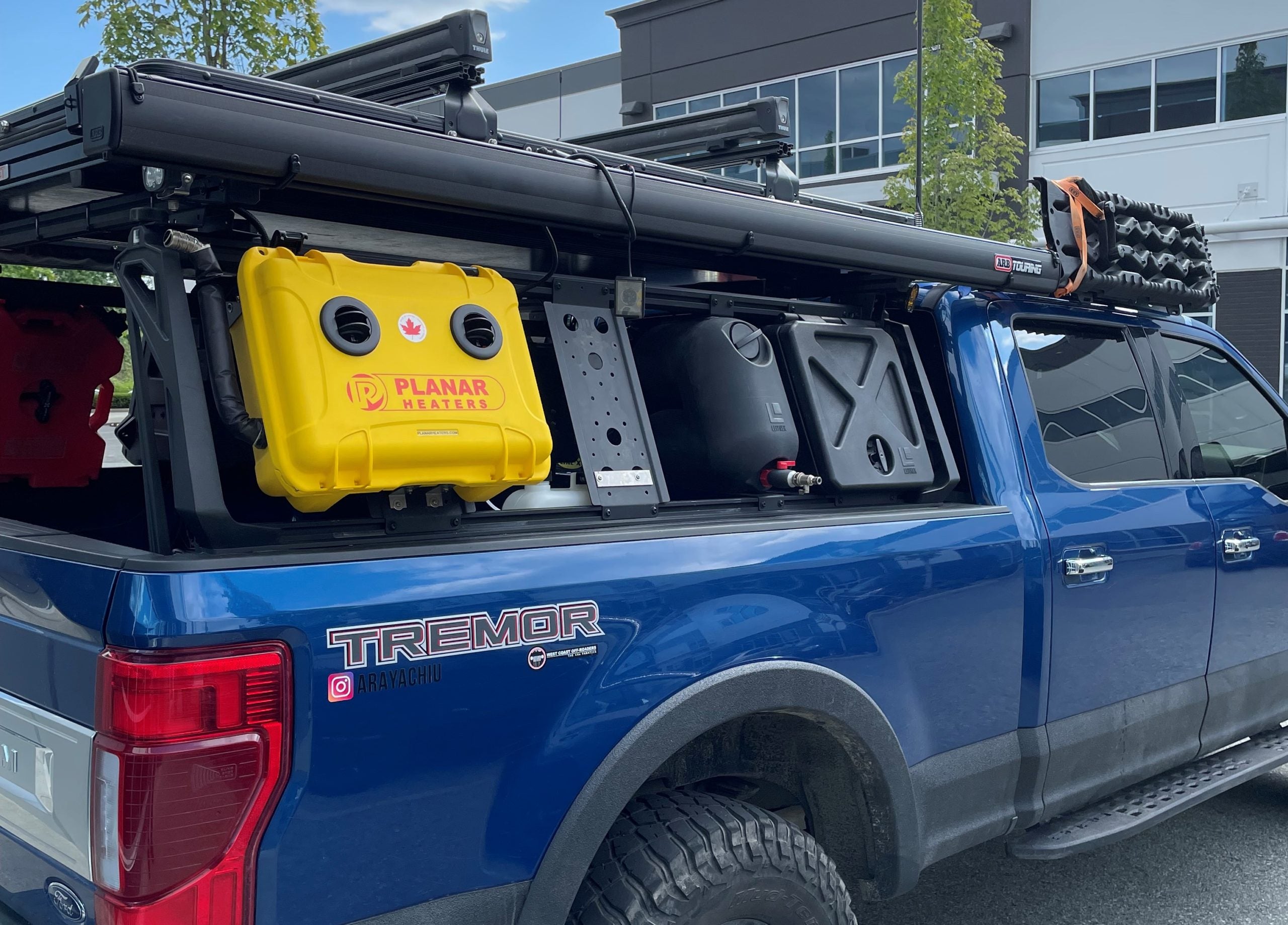

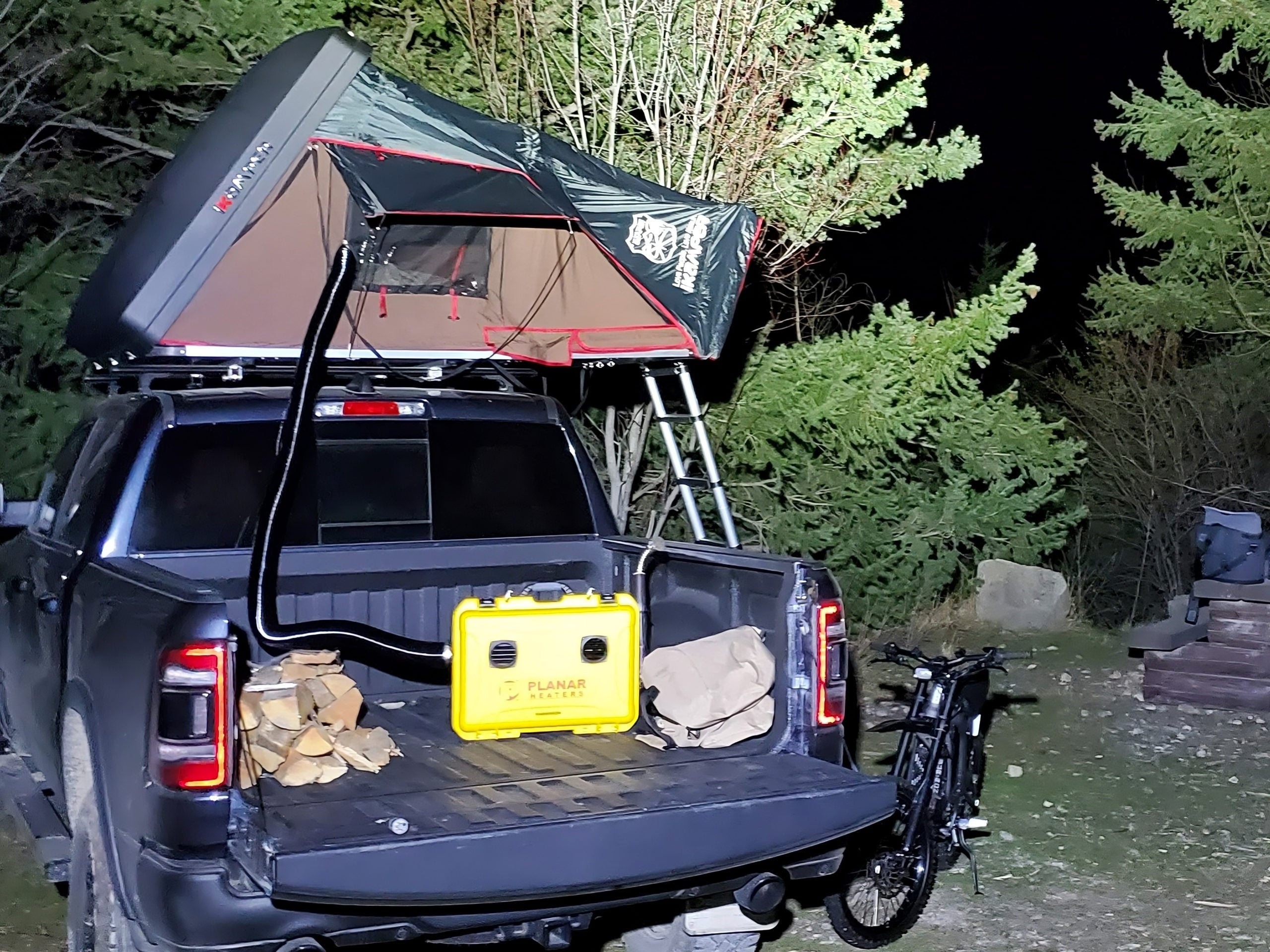

- Suitable for RVs, campers, vans, boats, tents and ice-fishing huts
- Suitable for operation at altitudes up to 8,200 ft
- Fuel consumption as low as 0.10 L/h

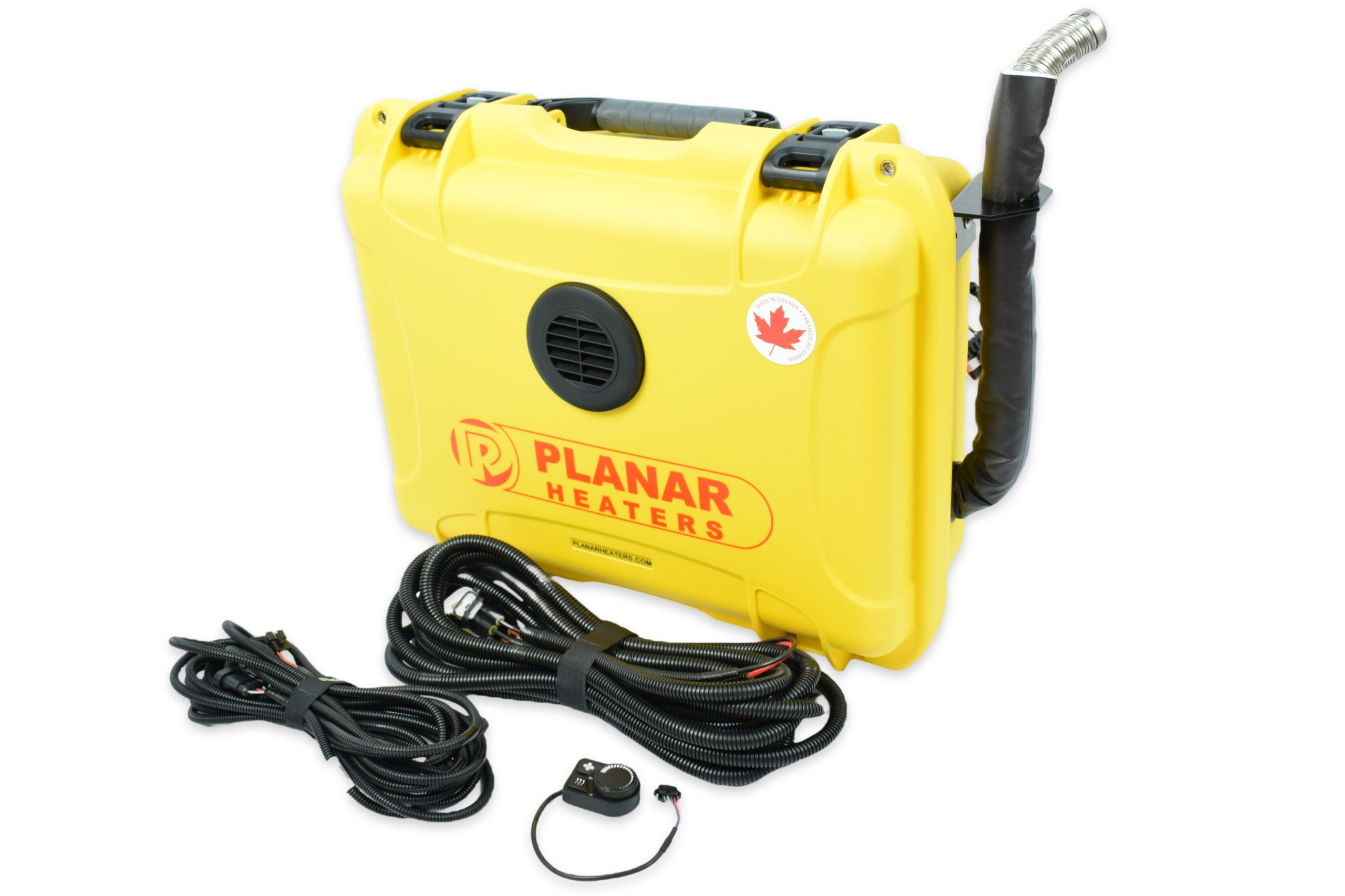

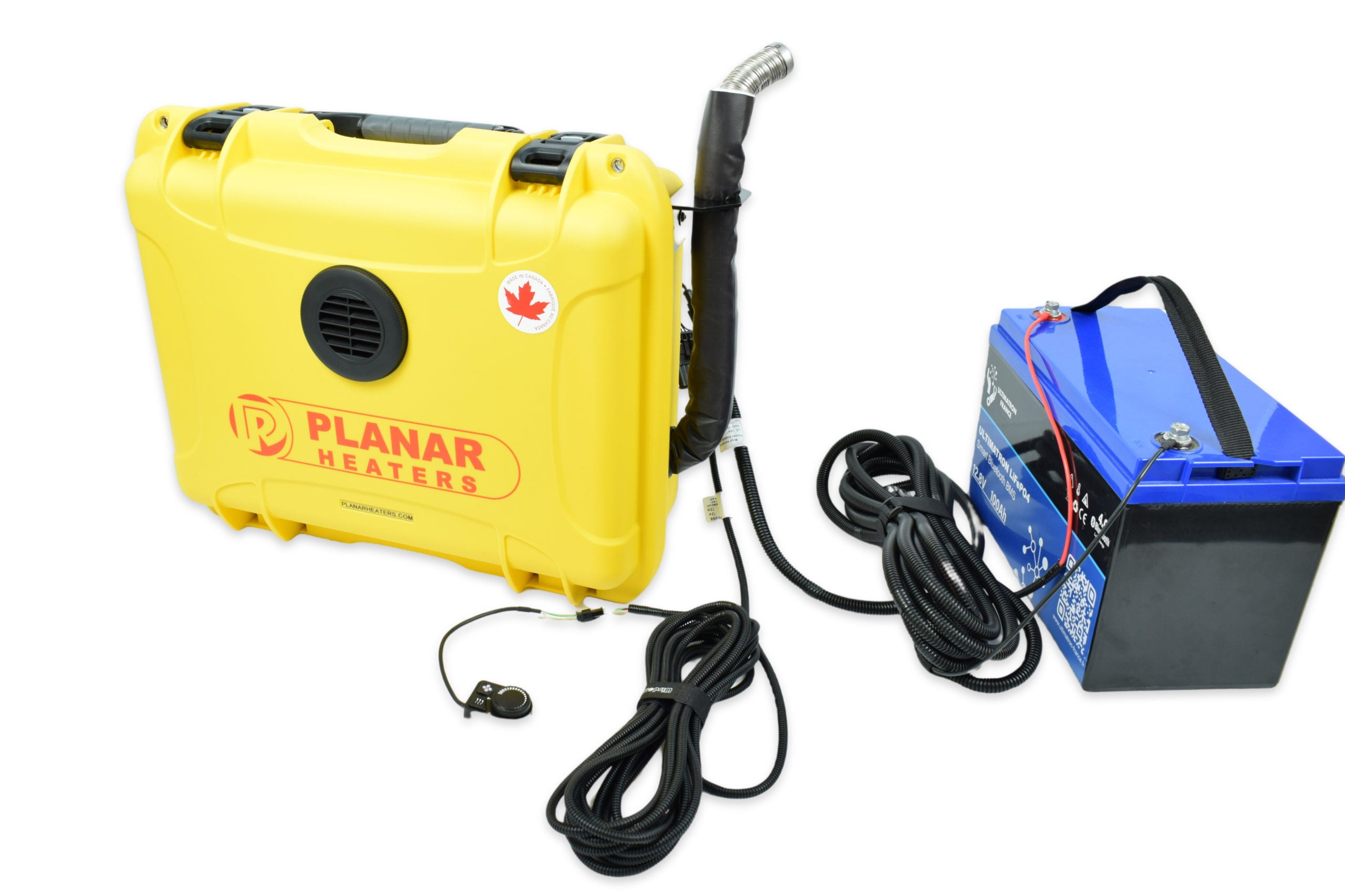

- Includes silencer and air intake filter
- Includes wired remote controller
- Temperature and power operating modes
- Designed to provide efficient, dry heat

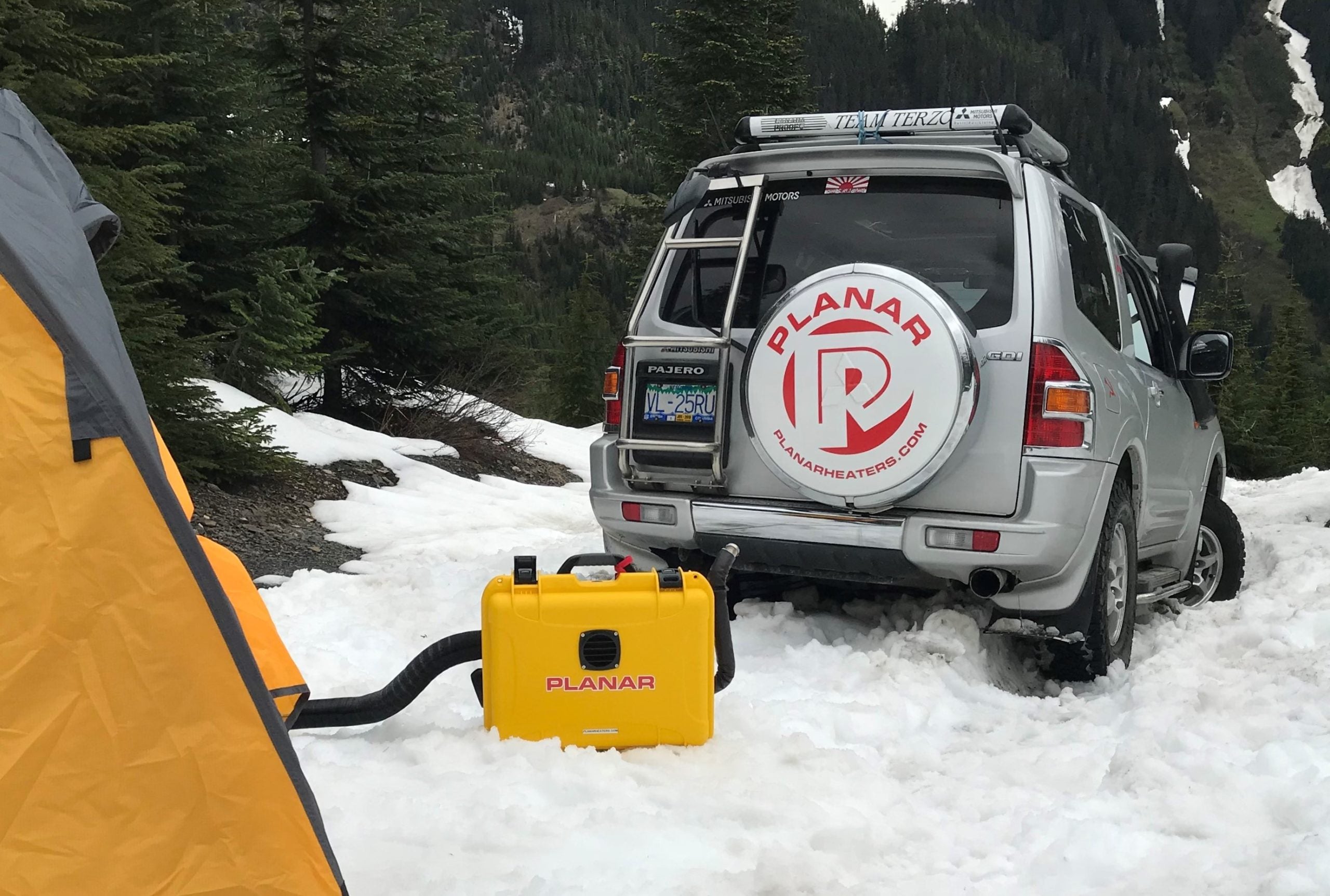

- Ideal for winter camping, hunting and ice fishing
Technical details:
| Heat Output: | 0.8 – 2.0 kw / 2,700-7,000 btu |
| Fuel Consumption: | 0.10-0.24 l/h / 0.03-0.06 gal/h |
| Nominal Supply Voltage: | 12V |
| Power Consumption; W (A): | 10-29 w (0.8-2.42 A) |
| Airflow Rate: | 34-75 m³/h |
| Weight: | 11.6 kg. / 25.5 lb. |
| L x D x H: | 324 x 118 x 119 mm. / 24 x 16.5 x 19 in |
| Operating Modes: | Temperature/Power |
Additional information
| Weight | 13 kg |
|---|---|
| Dimensions | 67 × 49 × 49 cm |
| High Temp. Heat Ducting* |
10 Feet |

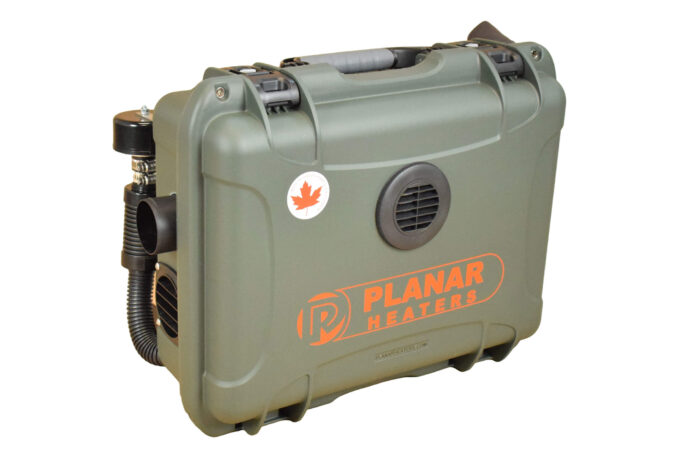

| Choose a Colour |
Yellow, Military Green |
Operation Manual (English)
Download Installation Manual Planar-EN V06.2023
Download Repair Manual Planar-EN-V11.2022
Download Spare Parts and BOM Planar 2D-EN 2D V10.2022
Operation Manual for Control Panel PU-5
Why Choose the Planar 2D Portable Diesel Heater?
The Planar 2D combines portable design, efficient diesel fuel consumption and dependable 12V operation in a rugged package made for outdoor and recreational applications. It is an excellent choice for RV owners, campers, boaters, hunters and ice anglers who need reliable heat away from conventional heating systems.
Order the Planar 2D Portable Diesel Air Heater – 12V from RMH RV Parts and take reliable portable heat with you on your next adventure.
