Wavian Top-Loading Jerry Can Holder — 10L
By Wavian USA
SKU: 2792
$95.99 CAD
$105.00
$95.99

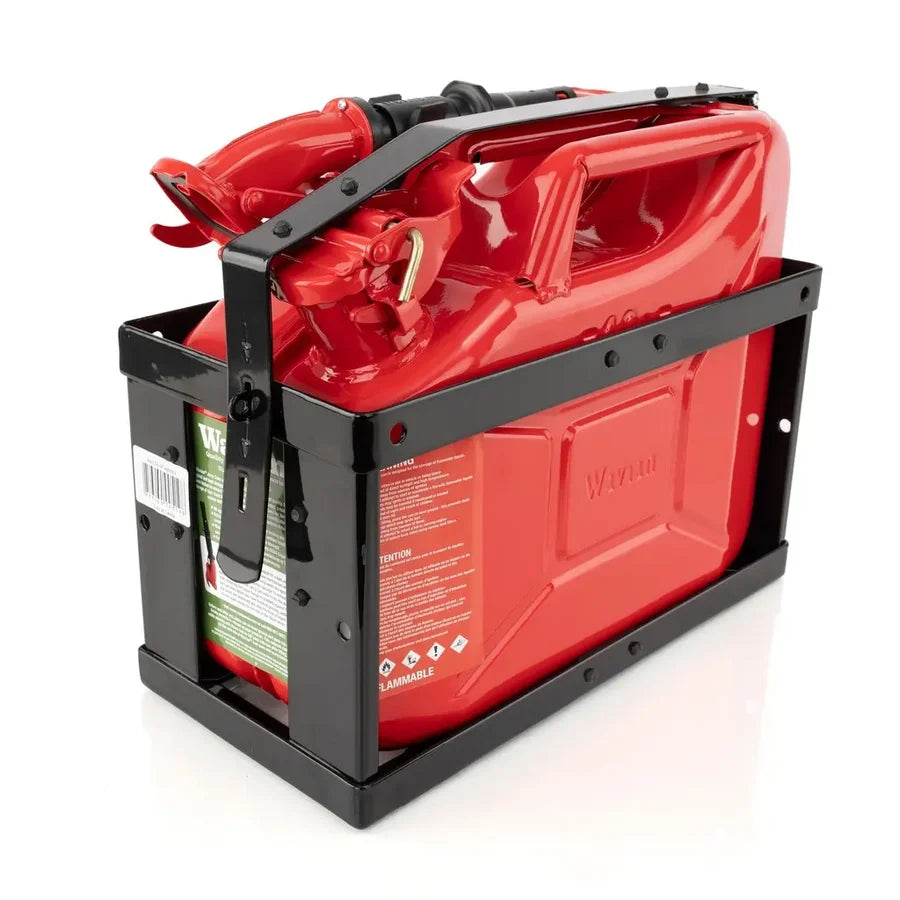

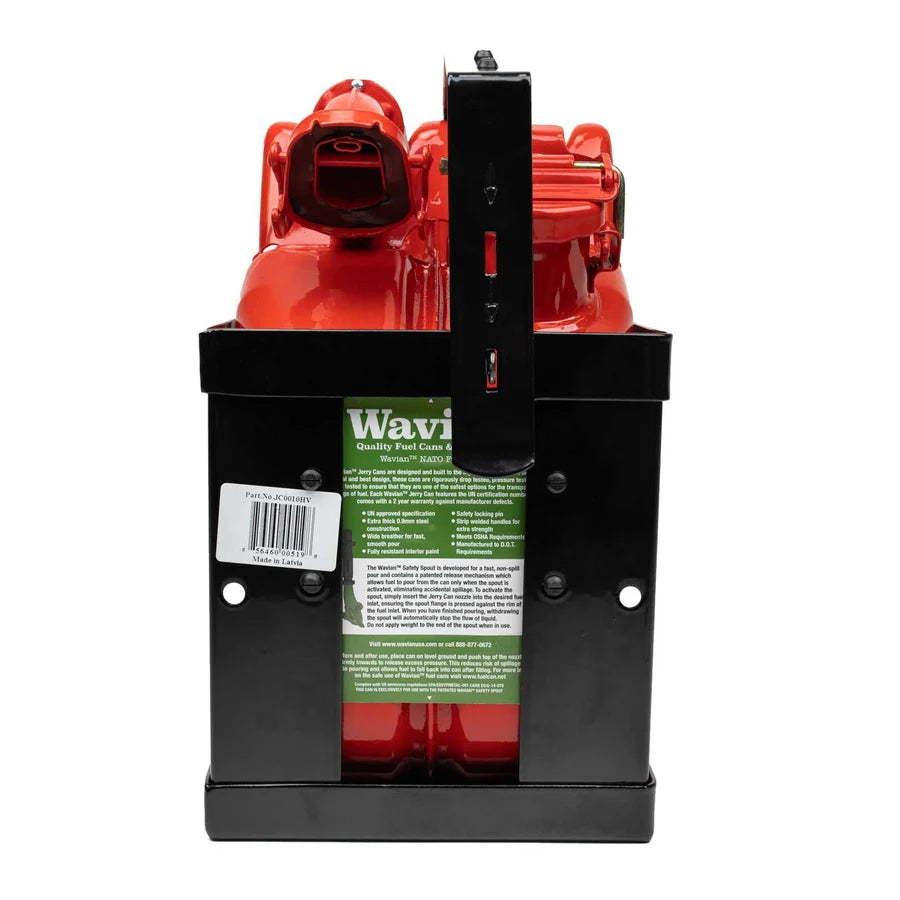

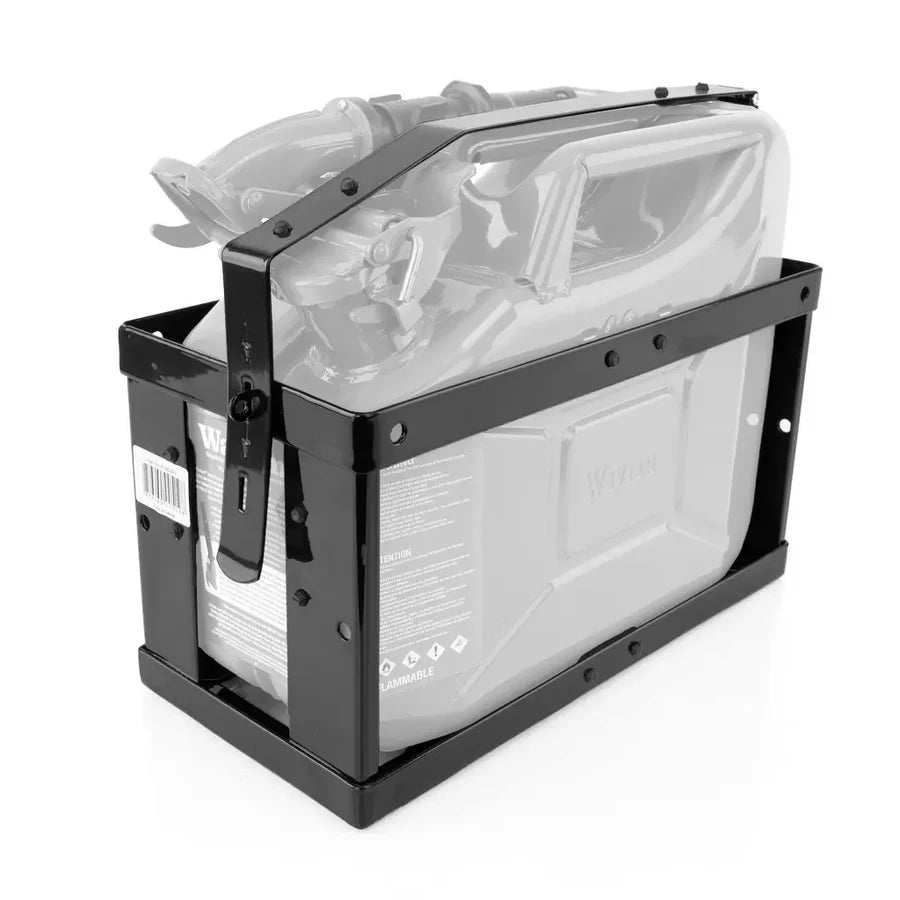

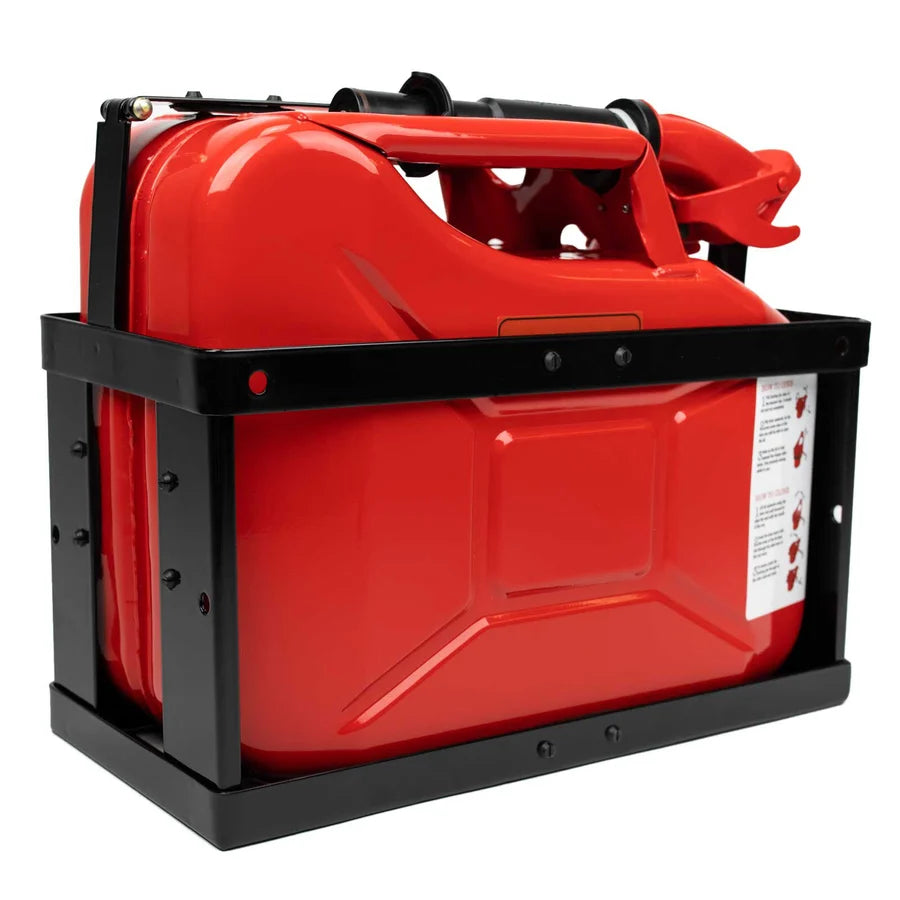

Vehicle-mount holder for the Wavian 10L jerry can, top-loading design. Same rugged construction as the 20L version, sized for the smaller can — a great fit for compact vehicles, motorcycles with cargo racks, or spot-mounts where space is tight.
- Fits: Wavian 10L jerry cans

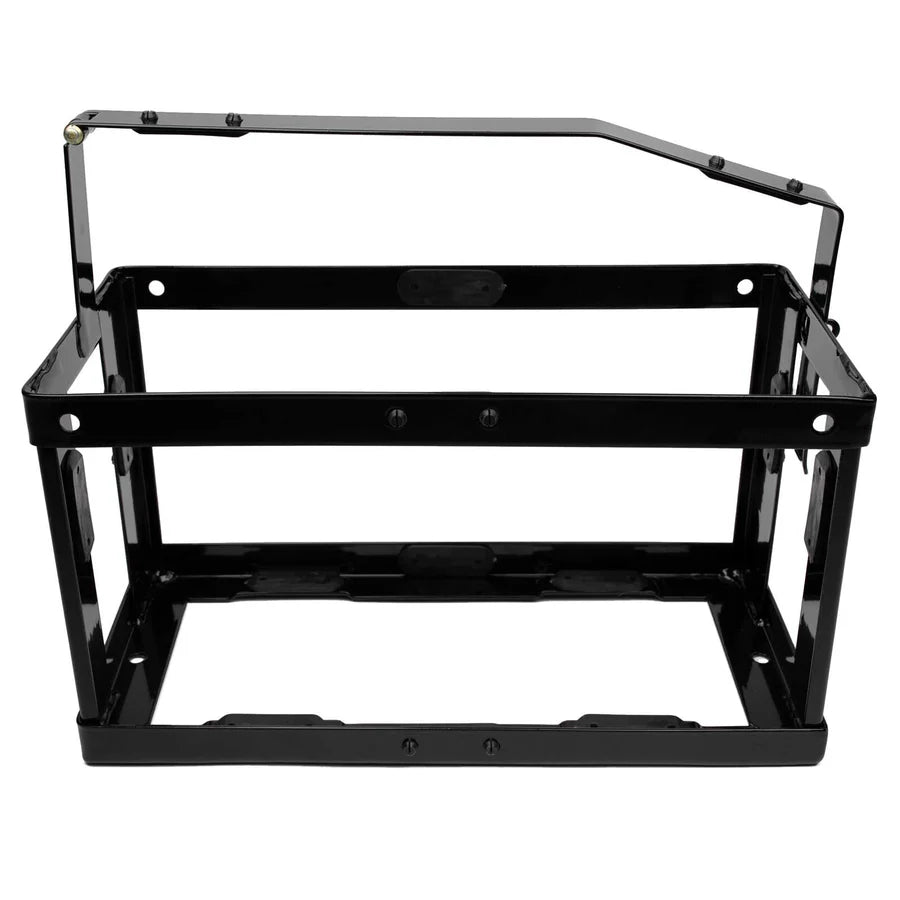

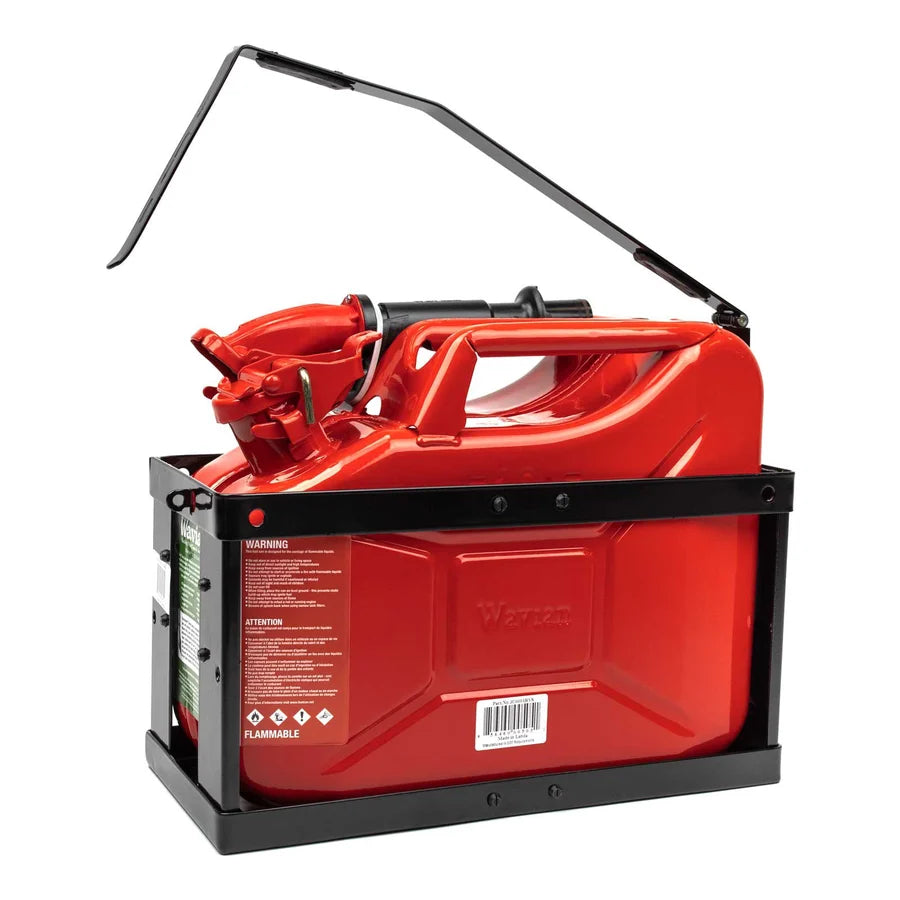

- Style: top-loading with retention lever
- Material: powder-coated steel
- Mounting hardware not included
Holder specifications
| Top-loading 20L | Front-loading 20L | Top-loading 10L | |
|---|---|---|---|
| Fits | 20L fuel can, 22L water can | 20L fuel can, 22L water can | 10L fuel can |
| Loads from | Above | Front | Above |
| Closure | Swing-over lever | Hinged bar with adjustable clasp | Swing-over lever |
| Overall size (W × H × D) | 14.8 × 19.2 × 7.1 in (377 × 487 × 180 mm) | 14.4 × 19.8 × 7.4 in (366 × 502 × 187 mm) across the side wings; back plate 8.5 in (215 mm) wide | 14.8 × 11.6 × 7.1 in (377 × 295 × 180 mm) |
| Footprint | 13.7 × 7.1 in (348 × 180 mm) | 13.7 × 7.3 in (348 × 186.5 mm) | 13.7 × 7.1 in (348 × 180 mm) |
| Weight | 6.3 lb (2.87 kg) | 9.3 lb (4.2 kg) | 4.9 lb (2.2 kg) |
| Mounting holes | 10 holes, 8.2 mm (clear a 5/16 in bolt) | 8 holes, 10.5 mm (clear a 3/8 in bolt): 4 in the back plate and 4 in the floor, each set on a 4 × 3⅛ in (100 × 80 mm) pattern | 10 holes, 8.2 mm (clear a 5/16 in bolt) |
| Lock hole | 6 mm | 9 mm | 6 mm |
| Mounting hardware | Not included | Not included | Not included |
| Padlock | Lockable; padlock not included | Lockable; padlock not included | Lockable; padlock not included |
| Mounts to | Vehicle or wall | Vertical or horizontal surface, through the back plate or the floor | Vehicle or wall |
| Finish | Steel, gloss black powder coat (RAL 9005) | Steel, gloss black powder coat (RAL 9005), rubber pads | Steel, gloss black powder coat (RAL 9005) |
| Spout stored with can | Yes | No | Yes |

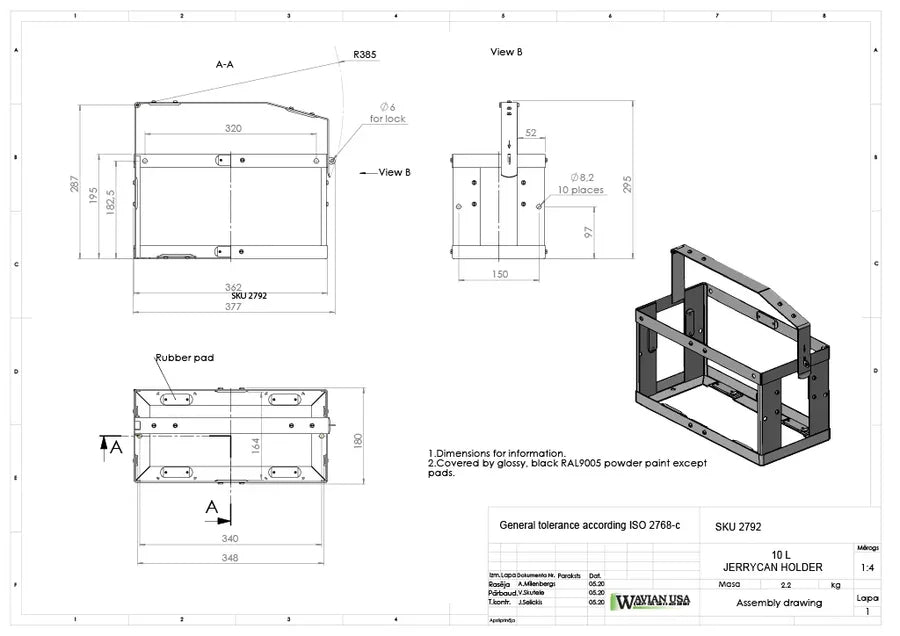

Dimensions and masses are from the Wavian USA factory assembly drawings. Fit, placement, and the loaded-weight table for each holder are in How to Mount a Jerry Can.
