Battery Manager Kit
Distributeur Go Power!
SKU: GP-BMG
$387.99 CAD
$485.00
$387.99

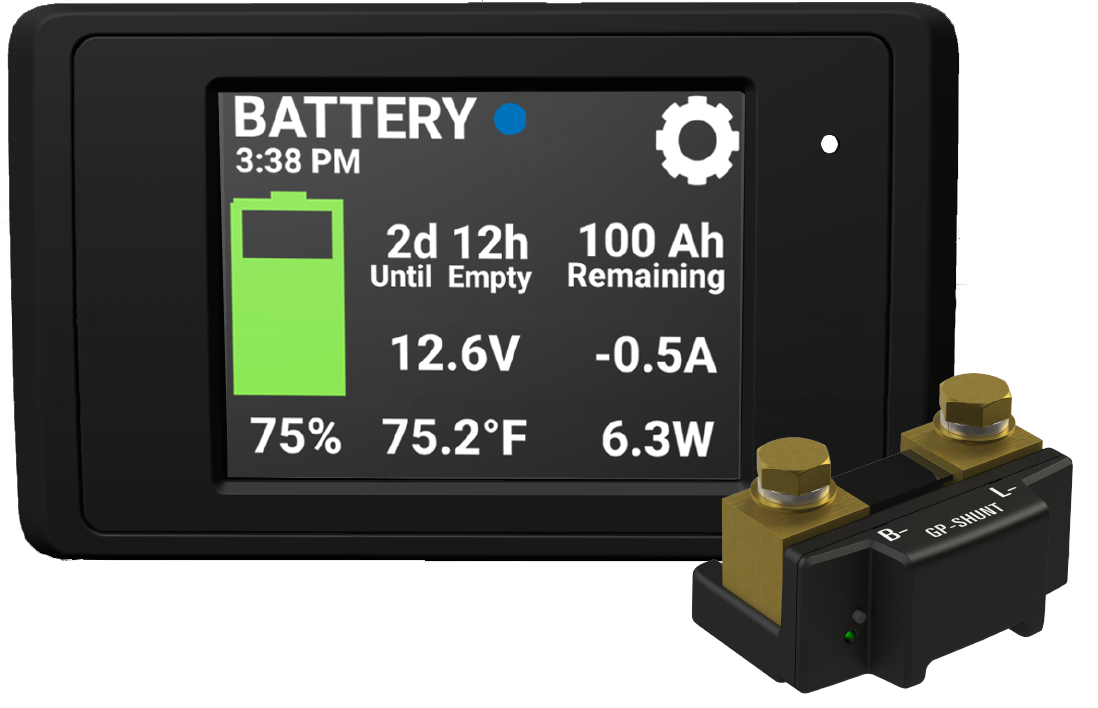

Understand your battery usage better. Update your battery bank and view your battery’s performance remotely with the Go Power! Battery Manager Kit (GP-BMG). Fit for all battery types, the Battery Manager, gives you easy to understand battery stats at the push of a button. With integrated Bluetooth® Wireless Technology, you can view your battery's performance from your connected smart device. Features a 2-year warranty.
MODEL: GP-BMG
Monitor essential battery statistics including:
- Time left at Current Draw
- State of Charge
- Capacity
- Voltage
- Current
In the Box:

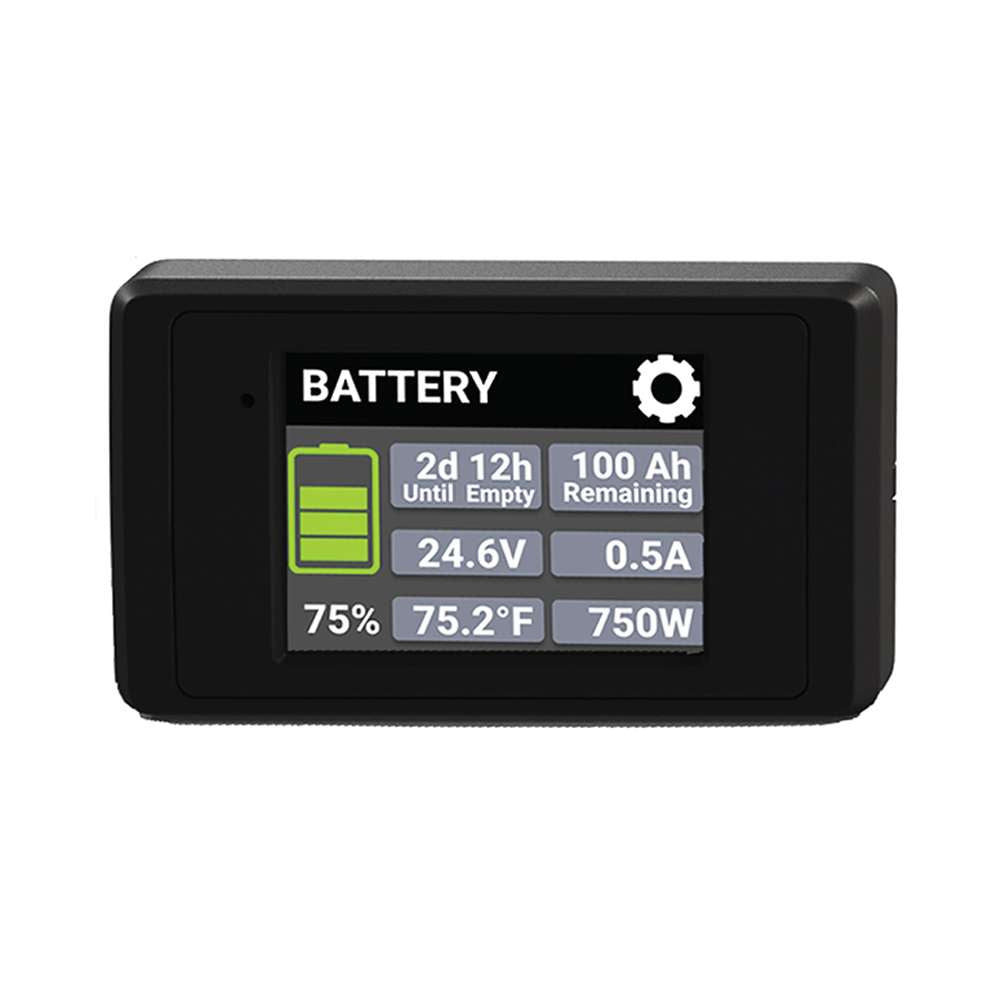

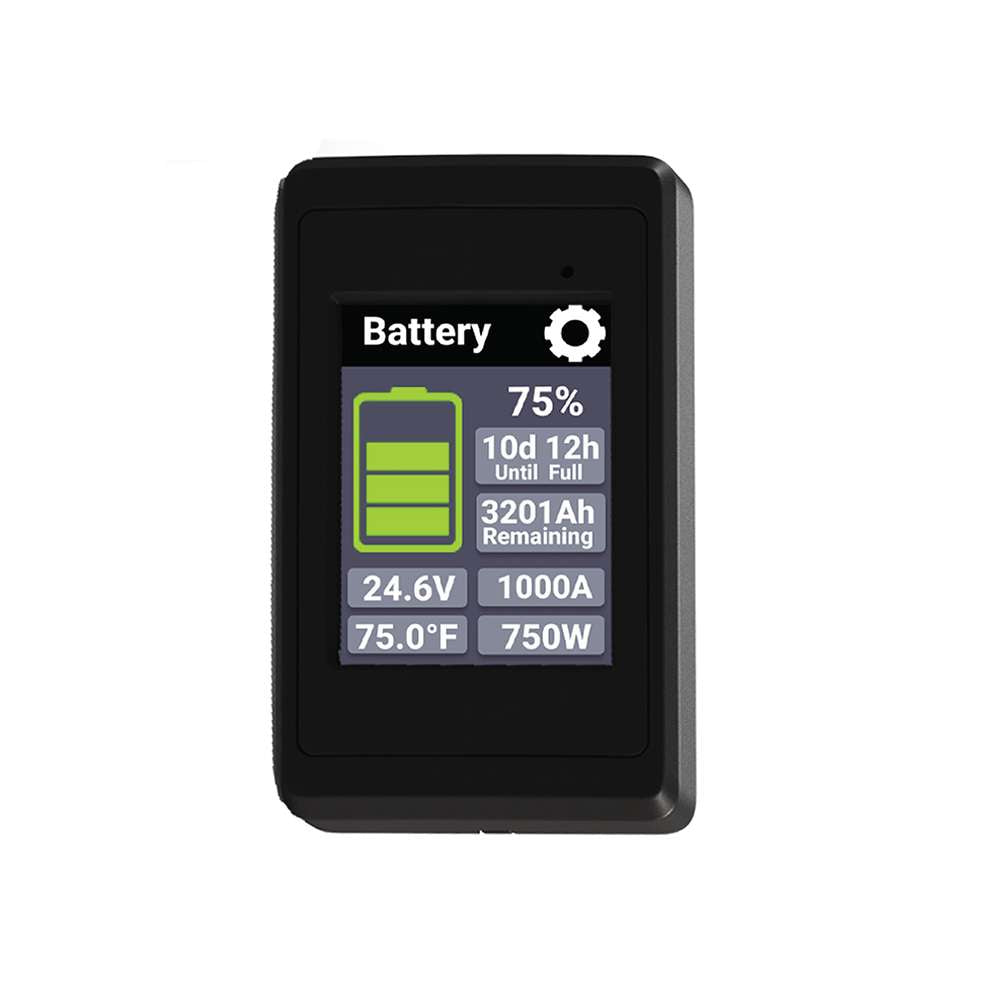

- Touch screen color display

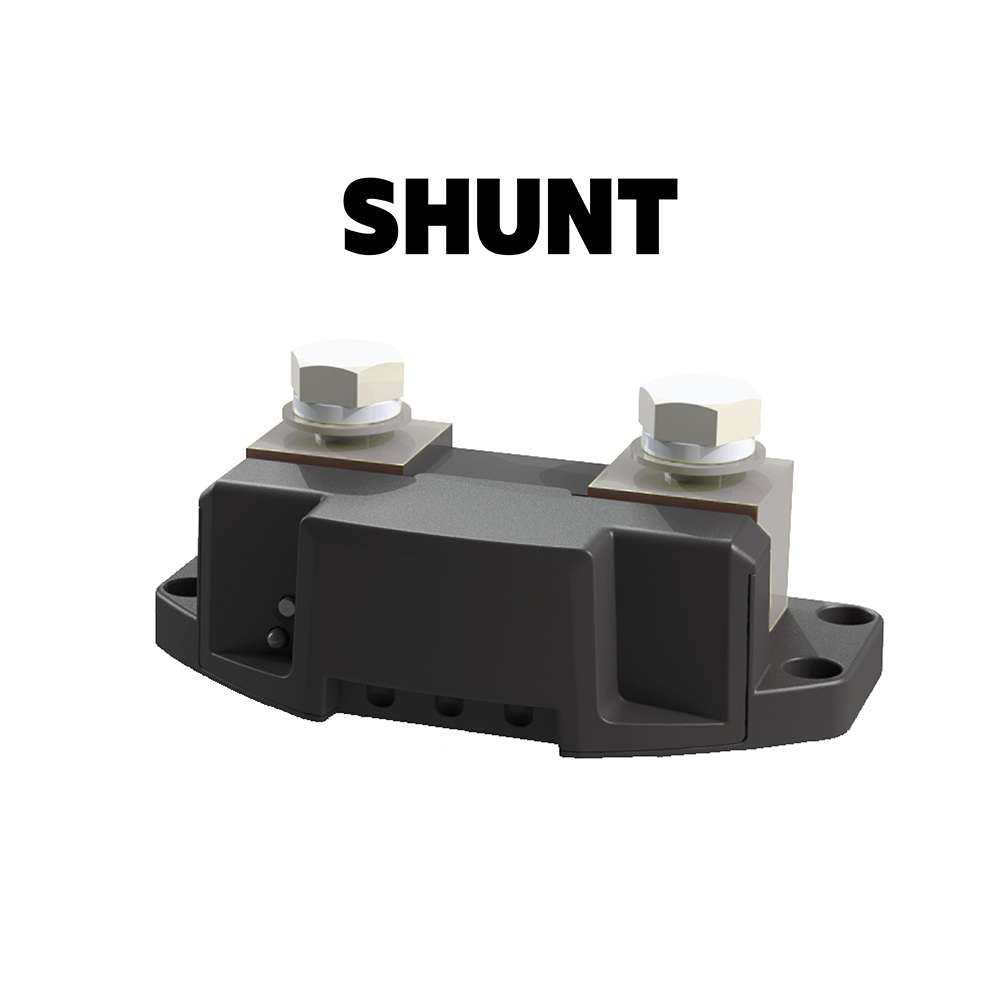

- 275A shunt (500A max surge)
- Ambient light sensor

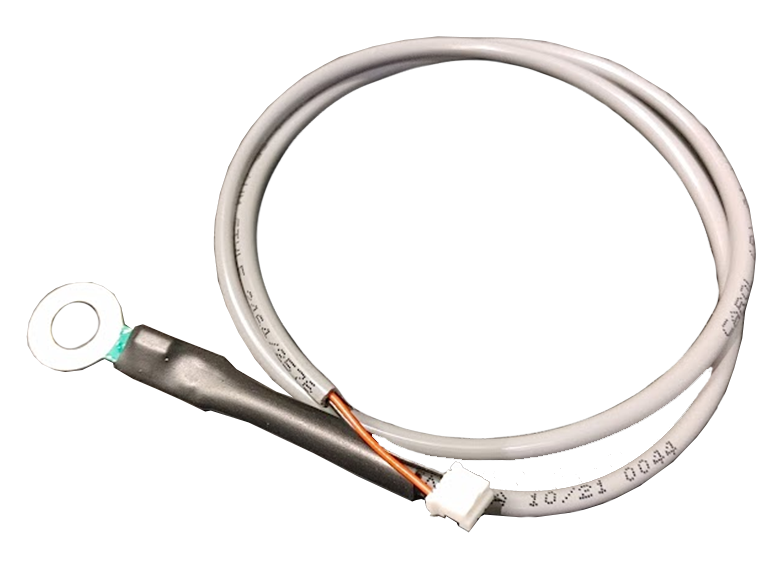

- Connectivity cables
- RV-C and Bluetooth® compatible
- Spec Sheet (GP-BMG)
- Quick Start Guide (GP-BMG)
- Over the Air Update Guide
Product Specifications
BATTERY MANAGER
|

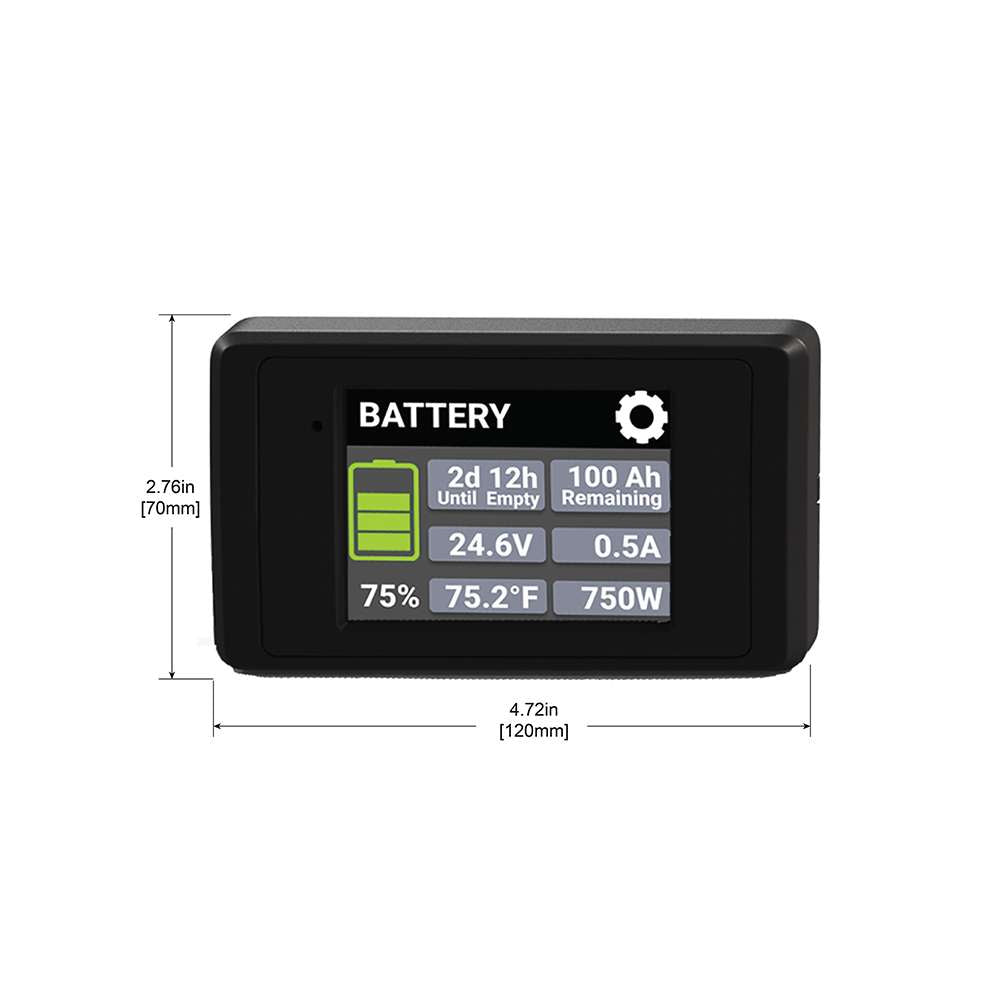

Display Size |
3.2 inches |
|
Display Resolution |
320×240 |
|
Touchscreen |
Resistive |
|
Supply Voltage |
12-48 VDC |
|
Max Supply Current |
@ 12 VDC Input – 400 mA @ 24 VDC Input – 200 mA |
|
Operating Temperature Range |
-20 to +50 °C |
|
Storage Temperature Range |
-30 to +70 °C |
|
Humidity |
5-95 % RH, non-condensing |
|
Bluetooth Range |
50 meters |
|
WiFi Bandwidth |
2.4 Ghz |
|
LCD Screen |
320×240 resolution |
|
Connectivity |
4 pin, 2mm pitch header connection |
