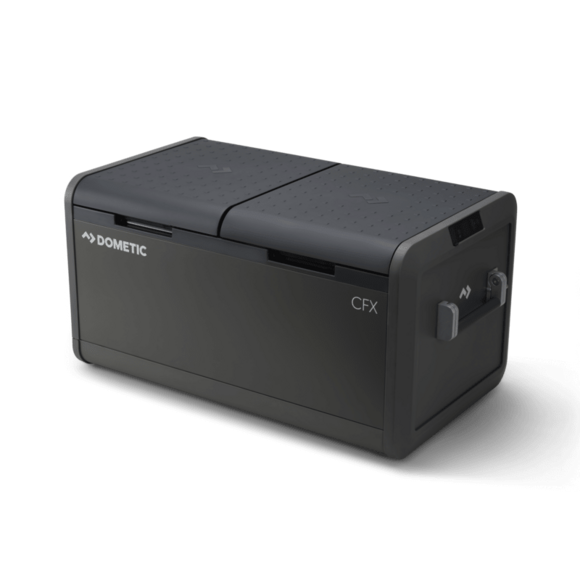

CFX5 95DZ Electric Cooler

• The 96L DZ capacity holds up to 133 x 12 oz cans – a large size for big groups and extended nomadic travel
• Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.
• Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.
• Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.
• Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
• 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.
• Two cooling zones allow you to bring refrigerated and frozen foods all at once.

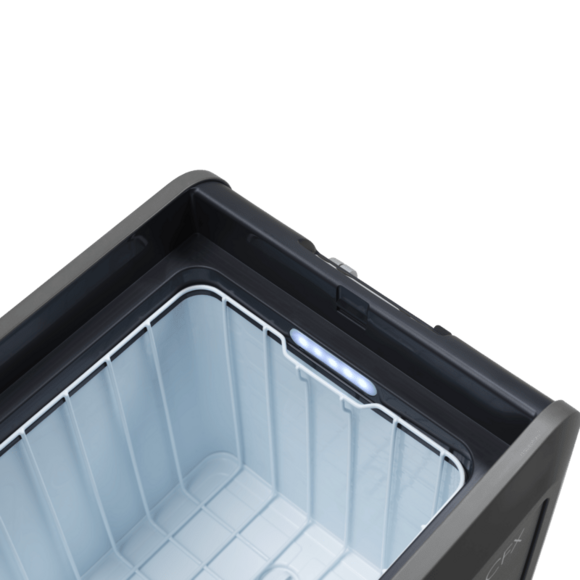

• Internal details include a removable wire divider and an interior light.
• External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.

Specifications

• Dimensions product depth, [mm]961.90
• Dimensions product height, [mm]471.93
• Dimensions product width, [mm]530.10
• Net weight, [kg]28.80
• Net weight, [lbs]63.50
• Total volume (IEC 62552-3), [l]94
• Amount of cans (12oz/375ml)121
• Input voltage (AC), [V]100-240


• Input voltage (DC), [V]12/24


• Rated input current (AC), [A]1.15A at 100V, 0.48A at 240V


• Rated input current (DC), [A]4.5A at 24V, 9.8A at 12V


• Rated input power (AC), [W]65


• Input frequency, [Hz]50/60


• Battery typeNot Applicable (NA)


• Priority circuit (Integrated)Yes
• Hermetically SealedYes
• Refrigerant, typeR1234yf GWP0.5
• Noise (EN60704-1 & 60704-2-14), [dB(A)]46
• Climate class (EN 62552)N/T
• Operating temperature min, [°C]16
• Operating temperature max, [°C]43
• Insulation TypePU (Polyurethane)
• USB PortYes
• Connectivity TypeBluetooth
• BasketYes
• Threaded inserts in base for mountingM6

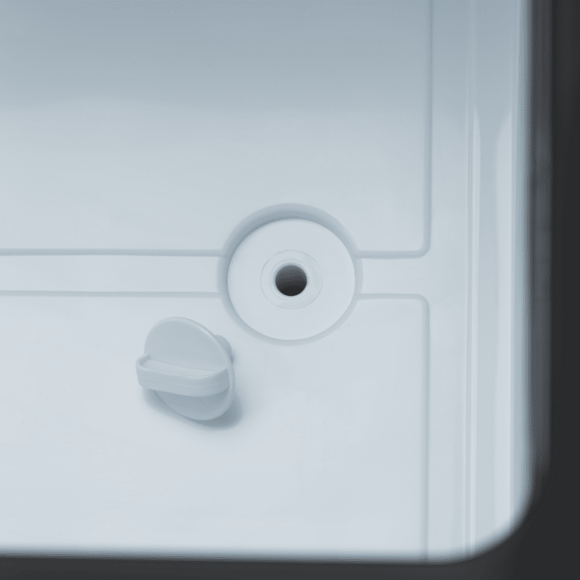

• Drain plugYes
• Anti-condensation coilYes
• Single or Dual ZoneDual
• Thermostat controlElectronic Thermostat
• Hinge typeRight hinged
• Interior lightYes, LED

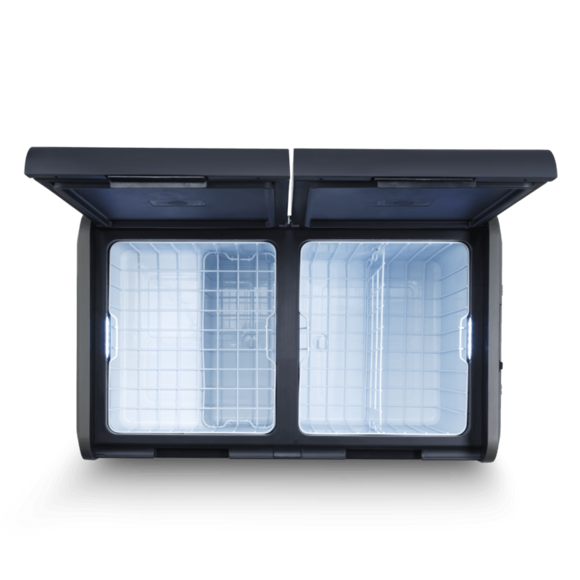

  TWO COOLING ZONES

  Dual zones let you set separate temps in separate compartments – one side cool, one side frozen.

  VIP – VACUUM INSULATED PANELS

  Exceptionally efficient insulation. Vacuum Insulated Panels have superb energy efficiency, VIPs minimize thermal transfer through superior sealing and air removal techniques.

  POWERFUL VMSO 3.5 COMPRESSOR

  Variable Motor Speed Optimization Technology 3.5 automatically adjusts speed for optimal performance.

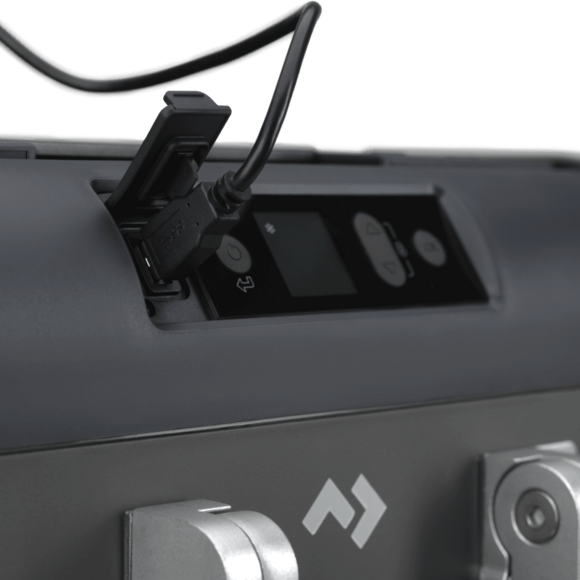

  WEATHERPROOF HIGH RESOLUTION DISPLAY

  Easy-to-read, weatherproof, high-resolution TFT color operating display, with 18W QC 3.0 USB port, and soft-touch buttons.

  RELIABLE & STABLE INTERIOR

  Internal components are mounted on dampers to isolate noise and endure sustained vibration off road.

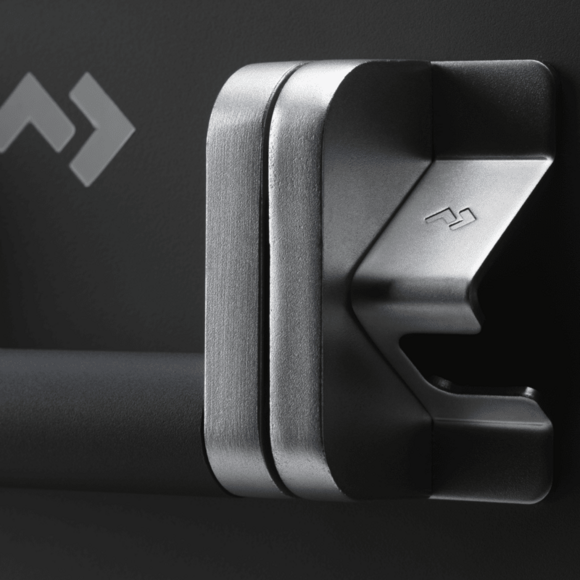

  PREMIUM DESIGN DETAILS

  Removable wire divider, interior light, self-folding aluminium alloy handles, an integrated bottle opener, TPE gaskets for a tight lid seal, and removable lid with textured non-slip logo.
